Quick Start Notebook with 250 Hz input

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.colors
import matplotlib.cm

import torch
import torch.nn as nn

from tqdm.auto import tqdm as pbar
import time

dtype = torch.float

if torch.cuda.is_available():
    device = torch.device("cuda")
else:
    device = torch.device("cpu")
print('⚠️ DEVICE USED:', device)

# Constants
SECONDS = 1
MS = 1e-3
HZ = 1
PI = np.pi

DT = .1 * MS                                      # or large time step to make simulations run faster: 1 * MS
ANF_PER_EAR = 100                                 # repeats of each ear with independent noise

DURATION = .1 * SECONDS                           # stimulus duration (100 ms)
DURATION_STEPS = int(np.round(DURATION / DT))
INPUT_SIZE = 2 * ANF_PER_EAR
NULL_PHASE_DELAYS = False                         # using the usual range (0-pi/2 for each side)
ENVELOPE_POWER = 2                                # higher values make sharper envelopes, easier
RATE_MAX = 600 * HZ                               # maximum Poisson firing rate
STIMULUS_FREQUENCY = 250 * HZ                     # or e.g., 20 * HZ

# Training
LR = 0.01
N_EPOCHS = 50
EARLY_STOPPING_ENABLED = True
batch_size = 64
n_training_batches = 64
n_testing_batches = 64                            # increase this if you can: e.g. 300, 1000
num_samples = batch_size*n_training_batches

# classes at 15 degree increments
NUM_CLASSES = 180 // 30  #180 // 15
print(f'⚠️ Number of classes = {NUM_CLASSES}')

# Network
NUM_HIDDEN = 5                                    # number of hidden units
IE_RATIO = 0.5                                    # ratio of inhibitory:excitatory units (used if DALES_LAW = True). 0 = all excitatory, 1 = all inhibitory
DALES_LAW = False                                 # When True, units will be only excitatory or inhibitory. When False, units will use both (like a normal ANN)
if DALES_LAW:
    print('⚠️ Using Dales Law')
else:
    print('⚠️ Without Dales Law')

def input_signal(ipd, null_phase_delays):
    """
    Generate an input signal (spike array) from array of true IPDs
    """
    num_samples = len(ipd)
    times = np.arange(DURATION_STEPS) * DT # array of times
    phi = 2*np.pi*(STIMULUS_FREQUENCY * times + np.random.rand()) # array of phases corresponding to those times with random offset
    # each point in the array will have a different phase based on which ear it is
    # and its delay
    theta = np.zeros((num_samples, DURATION_STEPS, 2*ANF_PER_EAR))

    # for each ear, we have anf_per_ear different phase delays from to pi/2 so
    # that the differences between the two ears can cover the full range from -pi/2 to pi/2
    if null_phase_delays:
        phase_delays = np.linspace(0, 0, ANF_PER_EAR) # CONTROL CASE (Null phase delays in baseline SNN)
    else:
        phase_delays = np.linspace(0, np.pi/2, ANF_PER_EAR)

    # now we set up these theta to implement that. Some numpy vectorisation logic here which looks a little weird,
    # but implements the idea in the text above.
    theta[:, :, :ANF_PER_EAR] = phi[np.newaxis, :, np.newaxis]+phase_delays[np.newaxis, np.newaxis, :]
    theta[:, :, ANF_PER_EAR:] = phi[np.newaxis, :, np.newaxis]+phase_delays[np.newaxis, np.newaxis, :]+ipd[:, np.newaxis, np.newaxis]
    # now generate Poisson spikes at the given firing rate as in the previous notebook
    spikes = np.random.rand(num_samples, DURATION_STEPS, 2*ANF_PER_EAR)<RATE_MAX*DT*(0.5*(1+np.sin(theta)))**ENVELOPE_POWER
    return spikes

def random_ipd_input_signal(num_samples, null_phase_delays, tensor=True):
    """
    Generate the training data
    Returns true IPDs from U(-pi/2, pi/2) and corresponding spike arrays
    """
    ipd = np.random.rand(num_samples)*np.pi-np.pi/2 # uniformly random in (-pi/2, pi/2)
    #ipd = np.random.uniform(-7.2*PI/180, 7.2*PI/180, num_samples)  # uniformly random in (-7.2*PI/180, 7.2*PI/180)
    spikes = spikes_from_fixed_idp_input_signal(ipd, null_phase_delays, tensor)

    if tensor:
        ipd = torch.tensor(ipd, device=device, dtype=dtype)

    return ipd, spikes

def spikes_from_fixed_idp_input_signal(ipd, null_phase_delays, tensor=True):
    spikes = input_signal(ipd, null_phase_delays)
    if tensor:
        spikes = torch.tensor(spikes, device=device, dtype=dtype)
    return spikes

def show_examples(shown=8):
    ipd = np.linspace(-np.pi/2, np.pi/2, shown)
    #ipd = np.linspace(-7.2*PI/180, 7.2*PI/180, shown)

    spikes = spikes_from_fixed_idp_input_signal(ipd, shown).cpu()

    plt.figure(figsize=(10, 4), dpi=100)
    plt.suptitle(f"stimulus_frequency = {STIMULUS_FREQUENCY} Hz", fontsize=12)  # Add TAU to the main title

    for i in range(shown):
        plt.subplot(2, shown // 2, i+1)
        plt.imshow(spikes[i, :, :].T, aspect='auto', interpolation='nearest', cmap=plt.cm.gray_r)
        plt.title(f'True IPD = {int(ipd[i]*180/np.pi)} deg')
        if i>=4:
            plt.xlabel('Time (steps)')
        if i%4==0:
            plt.ylabel('Input neuron index')
    plt.tight_layout()

def data_generator(ipds, spikes):
    perm = torch.randperm(spikes.shape[0])
    spikes = spikes[perm, :, :]
    ipds = ipds[perm]
    n, _, _ = spikes.shape
    n_batch = n//batch_size
    for i in range(n_batch):
        x_local = spikes[i*batch_size:(i+1)*batch_size, :, :]
        y_local = ipds[i*batch_size:(i+1)*batch_size]
        yield x_local, y_local

def discretise(ipds):
    return ((ipds+np.pi/2) * NUM_CLASSES / np.pi).long() # assumes input is tensor
    #return ((ipds+7.2*np.pi/180) * NUM_CLASSES / (7.2*2*np.pi/180)).long() # assumes input is tensor

def continuise(ipd_indices): # convert indices back to IPD midpoints
    return (ipd_indices+0.5) / NUM_CLASSES * np.pi - np.pi / 2
    #return (ipd_indices+0.5) / NUM_CLASSES * (7.2*2*np.pi/180) - 7.2*np.pi/180

show_examples()

def sigmoid(x, beta):
    return 1 / (1 + torch.exp(-beta*x))

def sigmoid_deriv(x, beta):
    s = sigmoid(x, beta)
    return beta * s * (1 - s)

class SurrGradSpike(torch.autograd.Function):
    @staticmethod
    def forward(ctx, inp):
        ctx.save_for_backward(inp)
        out = torch.zeros_like(inp)
        out[inp > 0] = 1.0
        return out

    @staticmethod
    def backward(ctx, grad_output):
        inp, = ctx.saved_tensors
        sigmoid_derivative = sigmoid_deriv(inp, beta=5)
        grad = grad_output*sigmoid_derivative
        return grad

spike_fn  = SurrGradSpike.apply

def membrane_only(input_spikes, weights, tau):
    """
    :param input_spikes: has shape (batch_size, duration_steps, input_size)
    :param weights: has shape  (input_size, num_classes
    :param tau:
    :return:
    """
    batch_size = input_spikes.shape[0]
    assert len(input_spikes.shape) == 3

    v = torch.zeros((batch_size, NUM_CLASSES), device=device, dtype=dtype)
    v_rec = [v]
    h = torch.einsum("abc,cd->abd", (input_spikes, weights))
    alpha = np.exp(-DT / tau)
    for t in range(DURATION_STEPS - 1):
        v = alpha*v + h[:, t, :]
        v_rec.append(v)
    v_rec = torch.stack(v_rec, dim=1)  # (batch_size, duration_steps, num_classes)
    return v_rec

def layer1(input_spikes, w1, tau, sign1, epoch):

    if DALES_LAW:
        w1 = get_signed_weights(w1, sign1)

    batch_size = input_spikes.shape[0]

    # First layer: input to hidden
    v = torch.zeros((batch_size, NUM_HIDDEN), device=device, dtype=dtype)
    s = torch.zeros((batch_size, NUM_HIDDEN), device=device, dtype=dtype)
    s_rec = [s]
    h = torch.einsum("abc,cd->abd", (input_spikes, w1))

    #if epoch == 0 or epoch == N_EPOCHS - 1:  # look into h at first and last epoch, compare to sham convolution SNN
        #print('h at epoch {}: '.format(epoch), h)

    alpha = np.exp(-DT / tau)

    for t in range(DURATION_STEPS - 1):
        new_v = (alpha*v + h[:, t, :])*(1-s) # multiply by 0 after a spike
        s = spike_fn(v-1) # threshold of 1
        v = new_v
        s_rec.append(s)
    s_rec = torch.stack(s_rec, dim=1)
    return s_rec

def layer2(s_rec, w2, tau, sign2):
    """Second layer: hidden to output"""
    if DALES_LAW:
        w2 = get_signed_weights(w2, sign2)

    v_rec = membrane_only(s_rec, w2, tau=tau)
    return v_rec

def snn(input_spikes, w1, w2, signs, tau_hidden, tau_output, epoch=0):
    """Run the simulation"""

    s_rec = layer1(input_spikes, w1, tau_hidden, signs[0], epoch)
    v_rec = layer2(s_rec, w2, tau_output, signs[1])

    # Return recorded membrane potential of output
    return v_rec

def get_dales_mask(nb_inputs, nb_out, ie_ratio) :

    d_mask = torch.ones(nb_inputs, nb_out)
    #inhib_units = np.random.choice(nb_inputs, int(nb_inputs*ie_ratio), replace=False)
    inhib_units = torch.arange(ie_ratio*nb_inputs, dtype=int)
    d_mask[inhib_units, :] = -1
    return d_mask

def init_weight_matrices(ie_ratio = 0.1):
    """Weights and uniform weight initialisation"""

    # Input to hidden layer
    w1 = nn.Parameter(torch.empty((INPUT_SIZE, NUM_HIDDEN), device=device, dtype=dtype, requires_grad=True))
    fan_in, _ = nn.init._calculate_fan_in_and_fan_out(w1)
    bound = 1 / np.sqrt(fan_in)
    nn.init.uniform_(w1, -bound, bound)

    # Hidden layer to output
    w2 = nn.Parameter(torch.empty((NUM_HIDDEN, NUM_CLASSES), device=device, dtype=dtype, requires_grad=True))
    fan_in, _ = nn.init._calculate_fan_in_and_fan_out(w2)
    bound = 1 / np.sqrt(fan_in)
    nn.init.uniform_(w2, -bound, bound)

    #Get fixed signs for the weight, 90% excitatory
    signs = [get_dales_mask(*w.shape, ie_ratio).to(w.device) for w in (w1, w2)]

    return w1, w2, signs

def get_signed_weights(w, sign):
    """Get the signed value of the weight"""
    # Note abs is in principle not differentiable.
    # In practice, pytorch will set the derivative to 0 when the values are 0.
    # (see https://discuss.pytorch.org/t/how-does-autograd-deal-with-non-differentiable-opponents-such-as-abs-and-max/34538)
    # This has the adverse effect that, during training, if a synapse reaches 0,
    # it is "culled" and can not be recovered.
    # It should be possible to cheat here and either "wiggle" 0-valued synapses,
    # or to override abs gradient to return a very small random number.

    #TODO try ReLu or other activation
    #TODO reproduce paper https://www.biorxiv.org/content/10.1101/2020.11.02.364968v2.full

   # return torch.max(w, 0)*sign
    return torch.abs(w)*sign

def train(w1, w2, signs, ipds, spikes, ipds_validation, spikes_validation, tau_hidden, tau_output, lr=0.01, n_epochs=30):
    """
    :param lr: learning rate
    :return:
    """
    # Optimiser and loss function
    optimizer = torch.optim.Adam([w1, w2], lr=lr)
    log_softmax_fn = nn.LogSoftmax(dim=1)
    loss_fn = nn.NLLLoss()

    loss_hist = []
    val_loss_hist = []

    val_loss_best_loss = 1e10

    print(' ')
    print('TRAINING PROGRESS: ')
    for e in pbar(range(n_epochs)):
        local_loss = []
        for x_local, y_local in data_generator(discretise(ipds), spikes):
            # Run network
            output = snn(x_local, w1, w2, signs, tau_hidden, tau_output, epoch=e)
            # Compute cross entropy loss
            #m = torch.sum(output, 1)*0.01  # Sum time dimension
            m = torch.mean(output, 1)

            reg = 0
            loss = loss_fn(log_softmax_fn(m), y_local) + reg
            local_loss.append(loss.item())

            # Update gradients
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()

        loss_hist.append(np.mean(local_loss))

        if EARLY_STOPPING_ENABLED:
            val_local_loss = []
            for x_local, y_local in data_generator(discretise(ipds_validation), spikes_validation):
                # Run network
                output = snn(x_local, w1, w2, signs, tau_hidden, tau_output)
                # Compute cross entropy loss
                #m = torch.sum(output, 1)*0.01  # Sum time dimension
                m = torch.mean(output, 1)

                val_loss = loss_fn(log_softmax_fn(m), y_local)
                val_local_loss.append(val_loss.item())

            val_loss_hist.append(np.mean(val_local_loss))

            # Early Stopping
            #if torch.tensor(val_loss_hist[-10:]).argmin() == 0  and e>10:
            if torch.mean(torch.tensor(val_loss_hist[-10:])) >= 70  and e>10:
                print('Early Stop at Epoch {}!'.format(e+1))
                if DALES_LAW:
                    best_weights = get_signed_weights(w1, signs[0]), get_signed_weights(w2, signs[1]), signs
                else:
                    best_weights = w1, w2, signs

                return best_weights

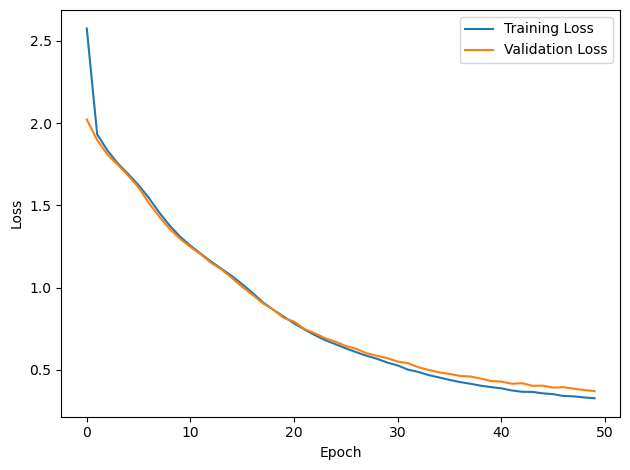

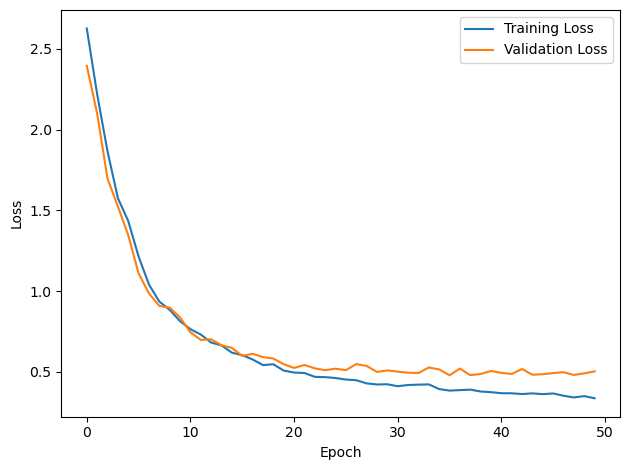

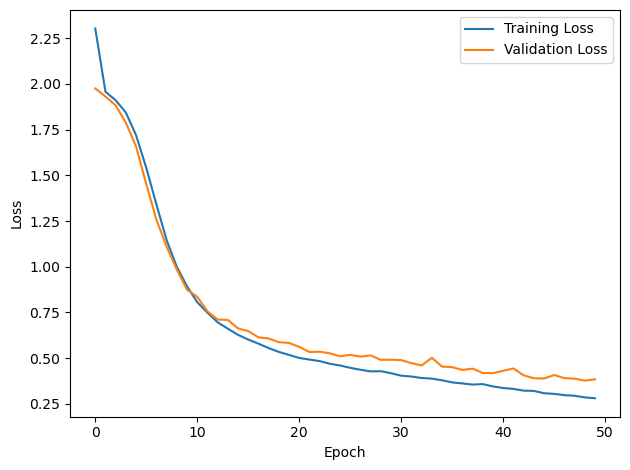

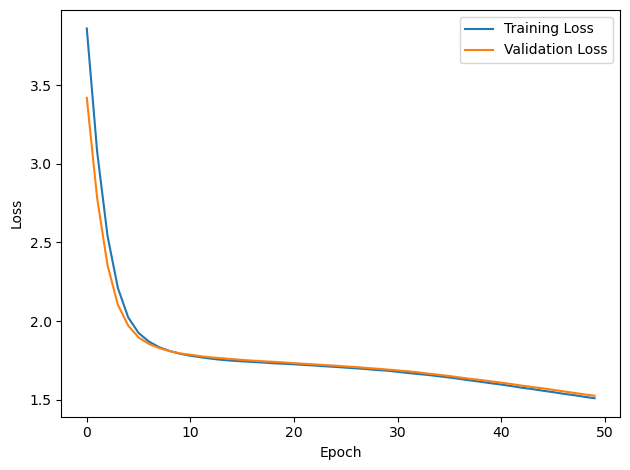

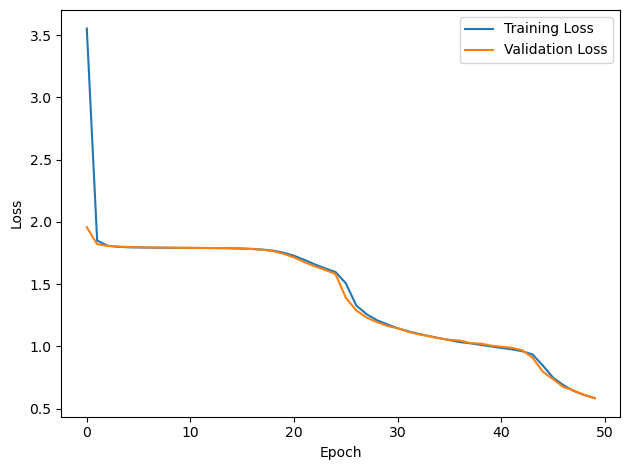

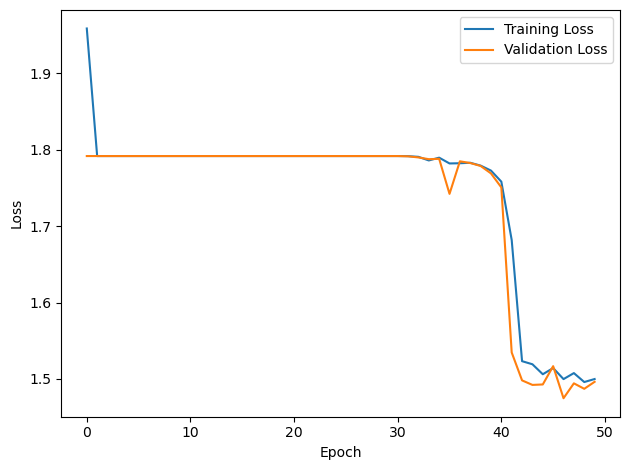

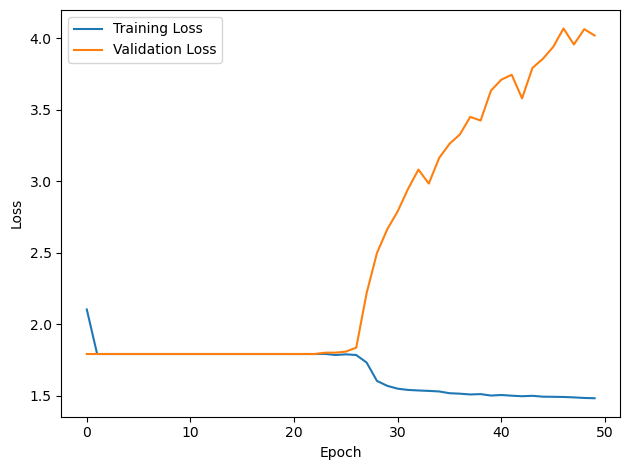

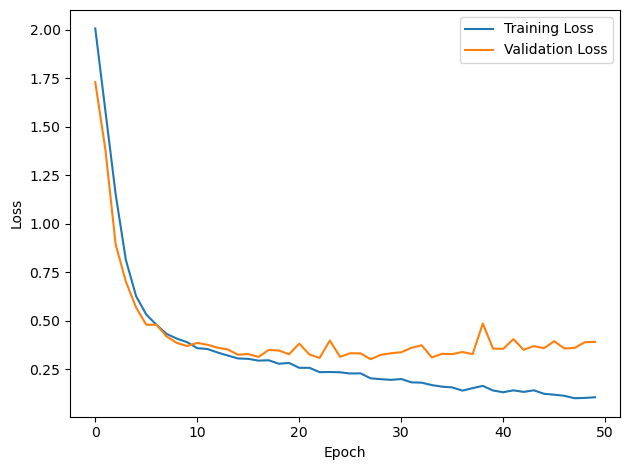

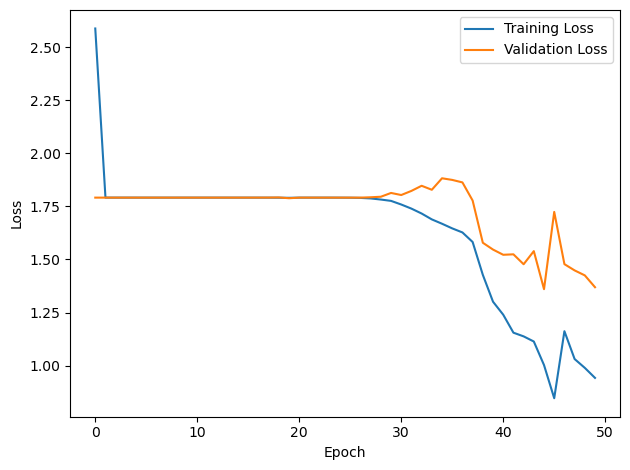

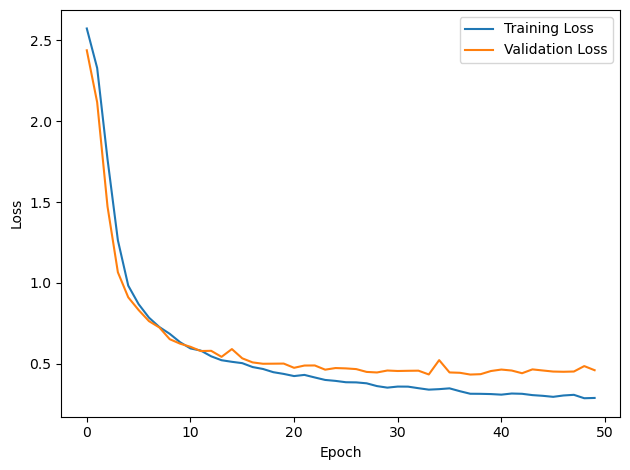

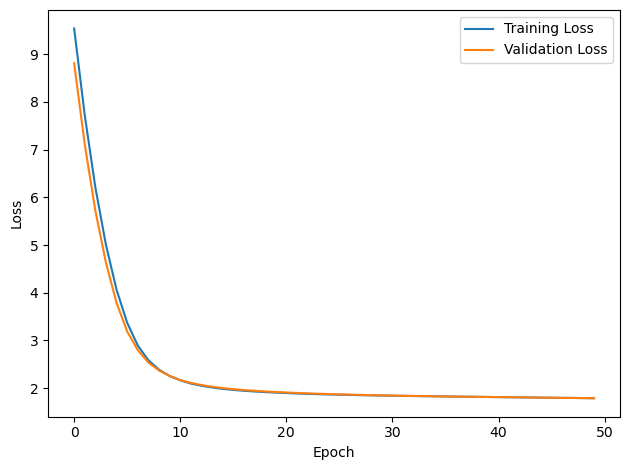

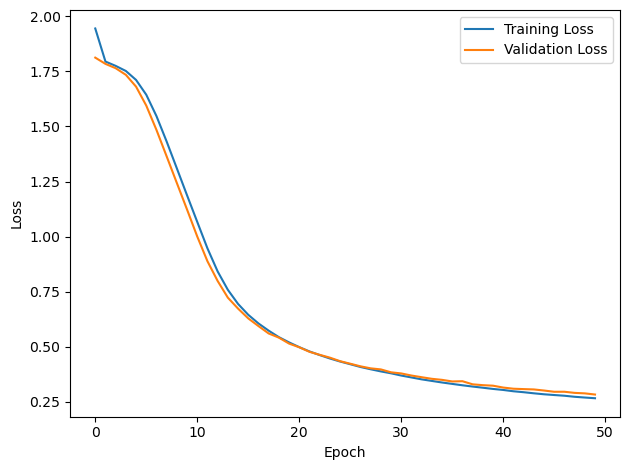

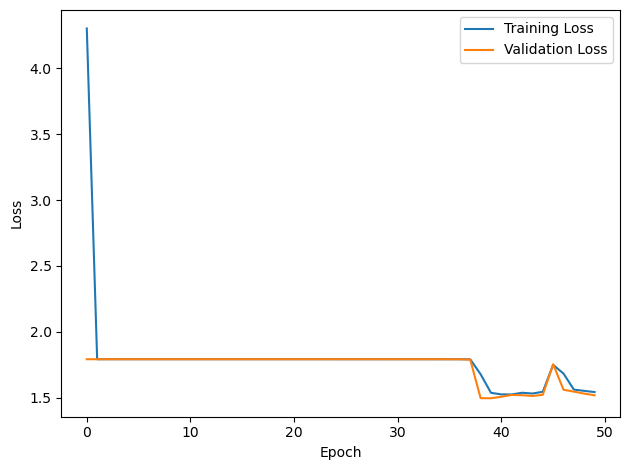

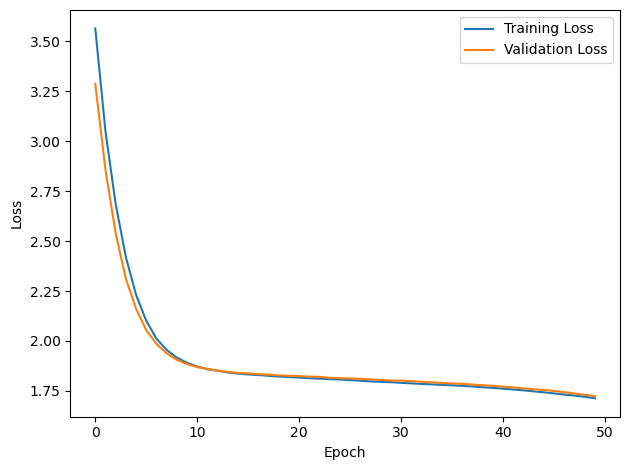

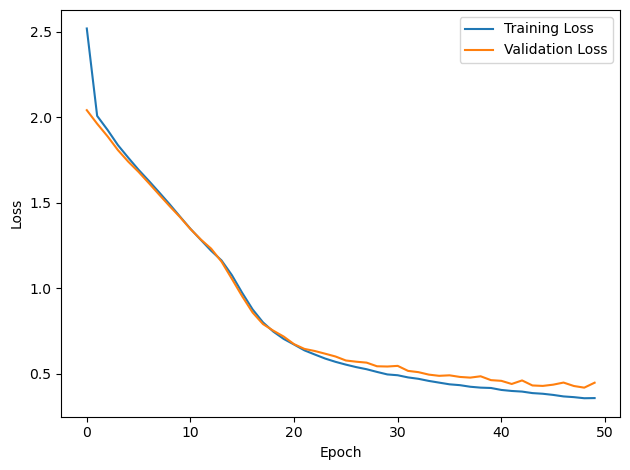

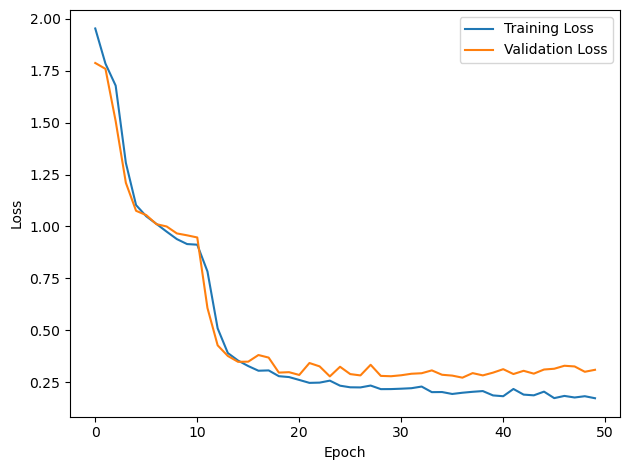

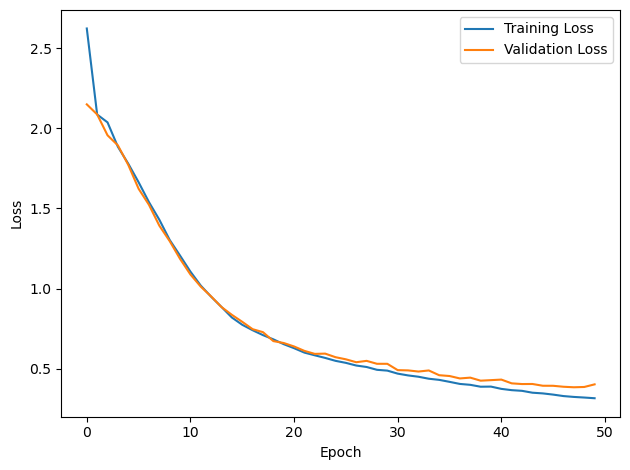

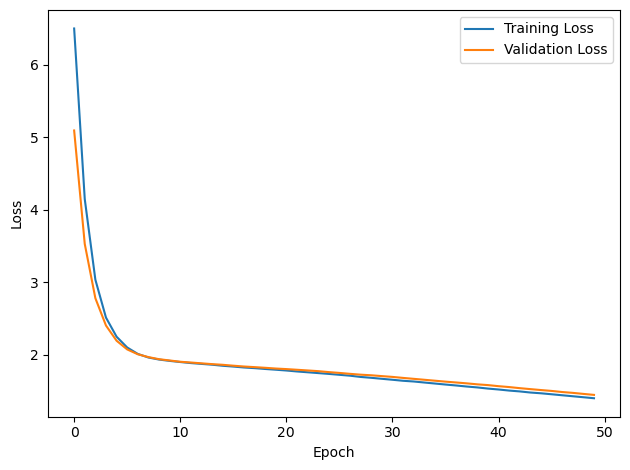

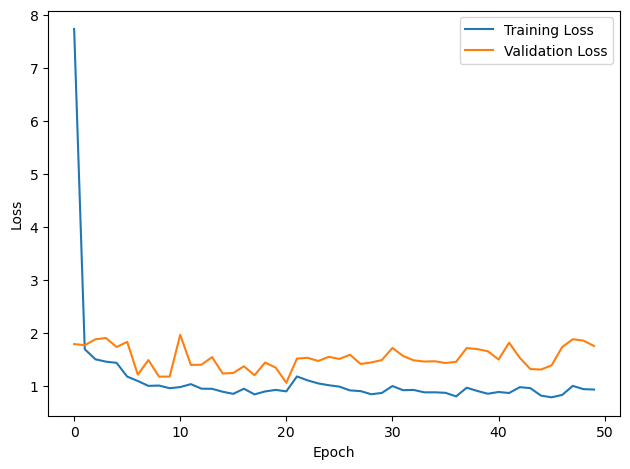

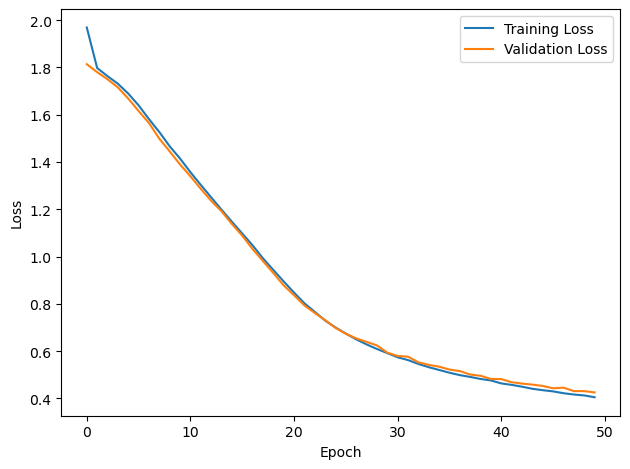

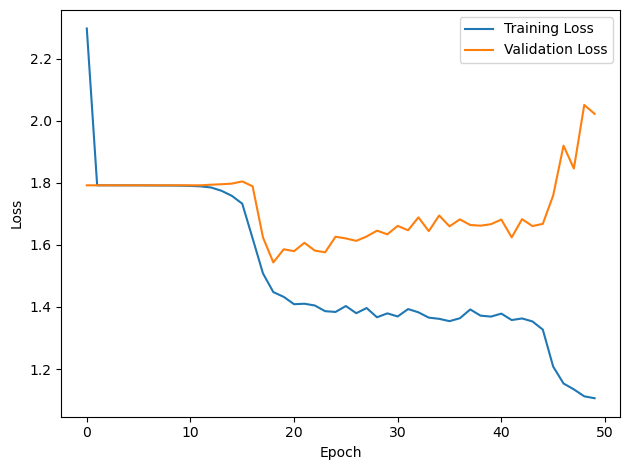

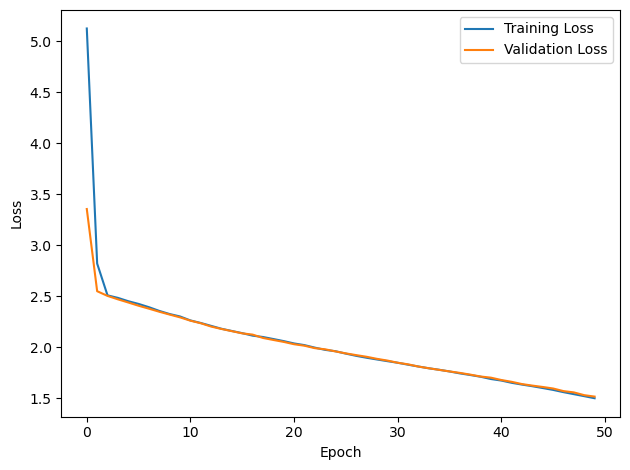

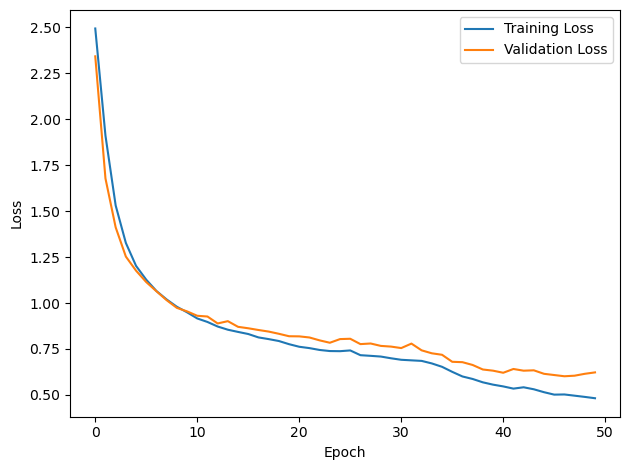

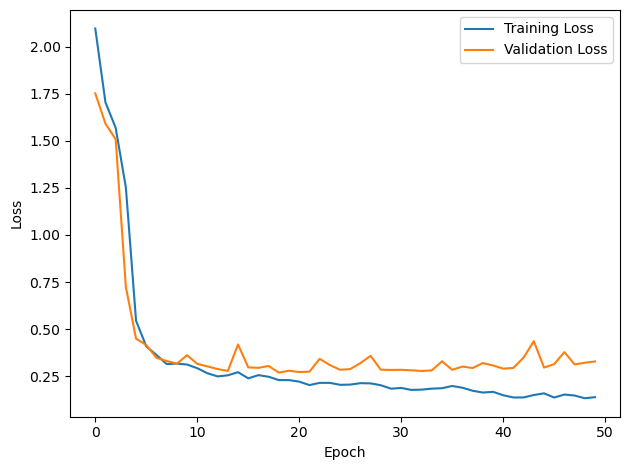

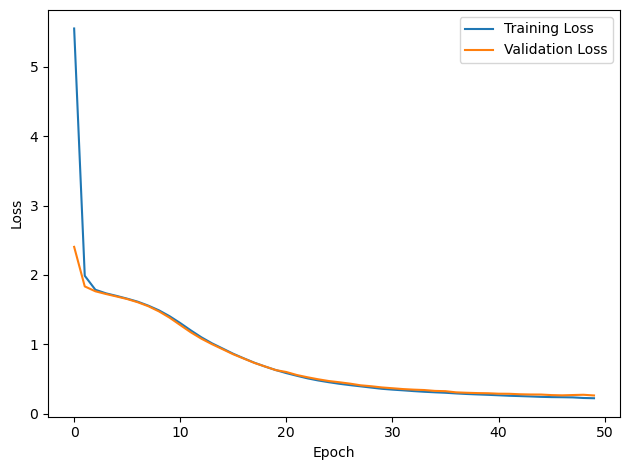

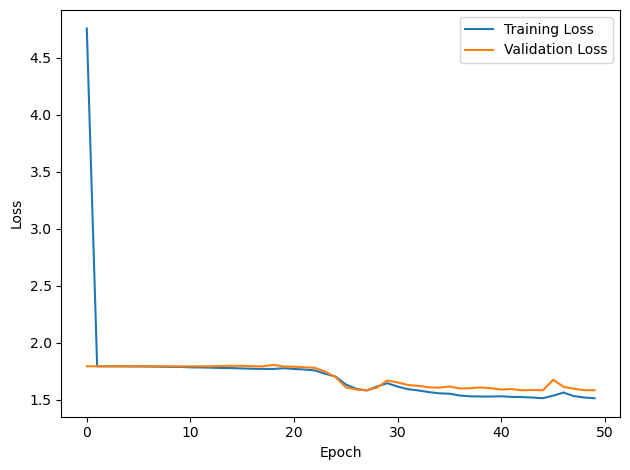

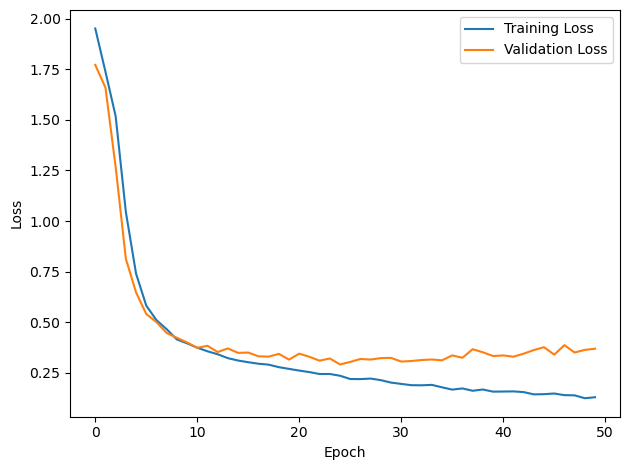

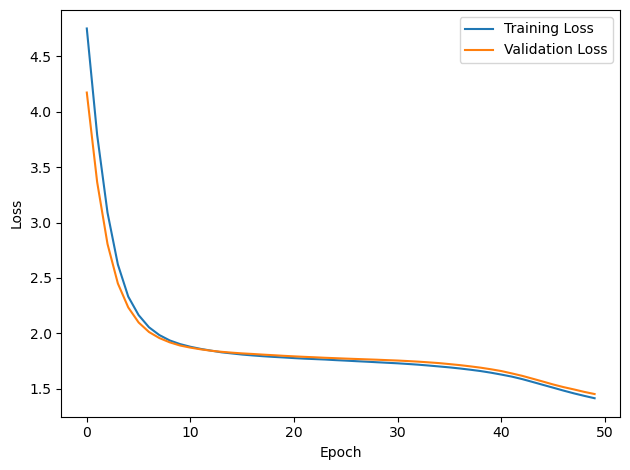

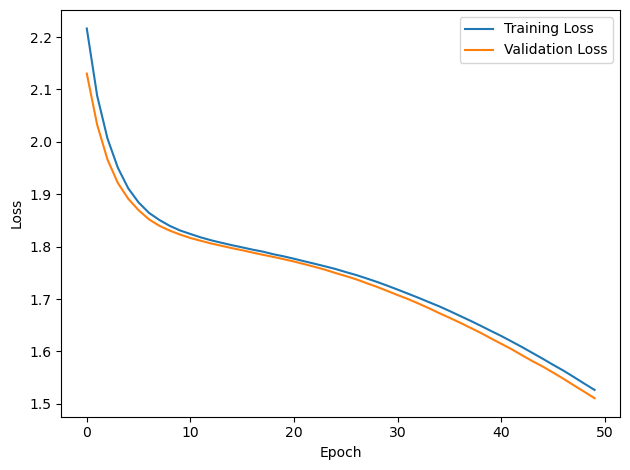

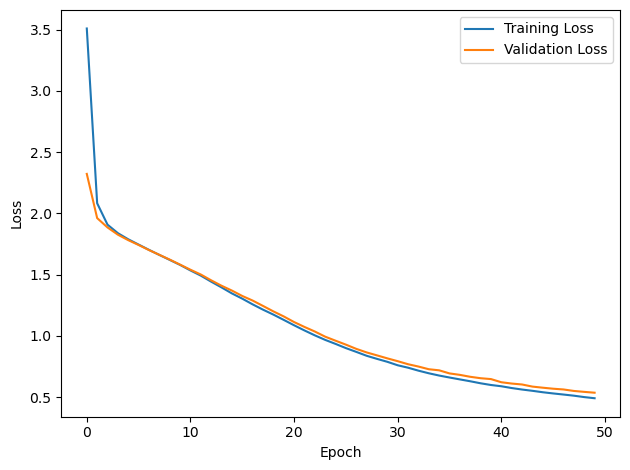

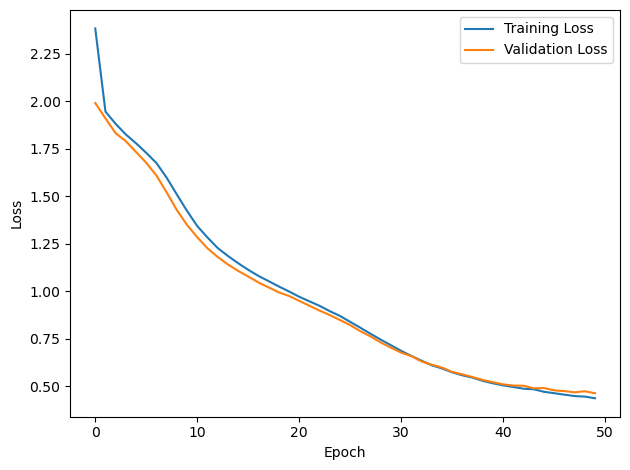

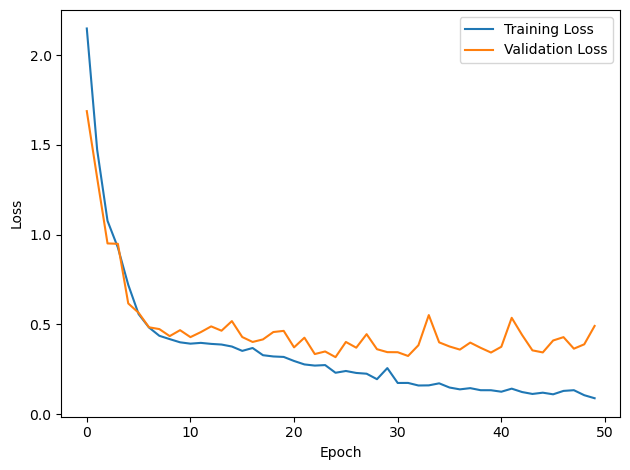

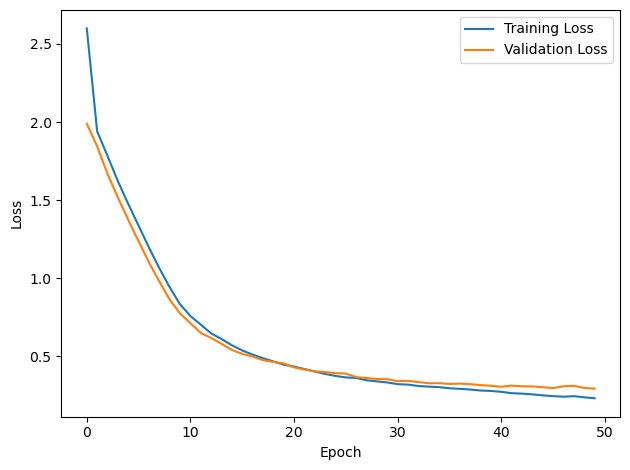

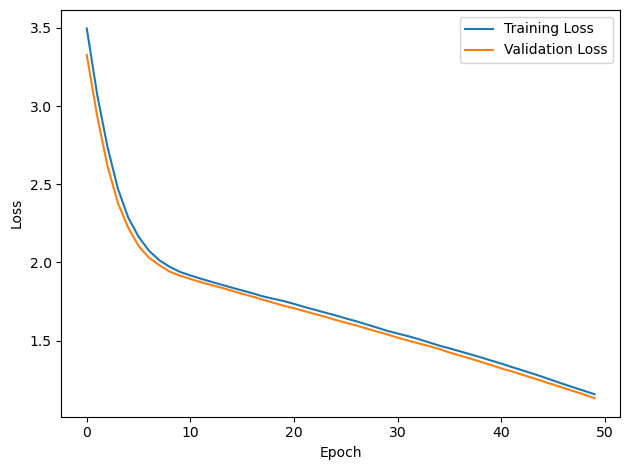

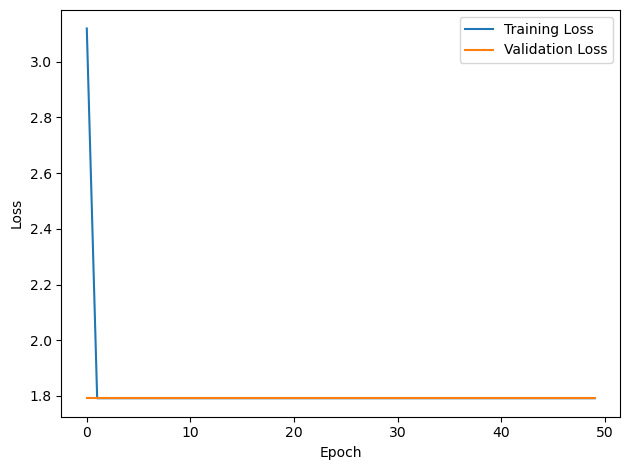

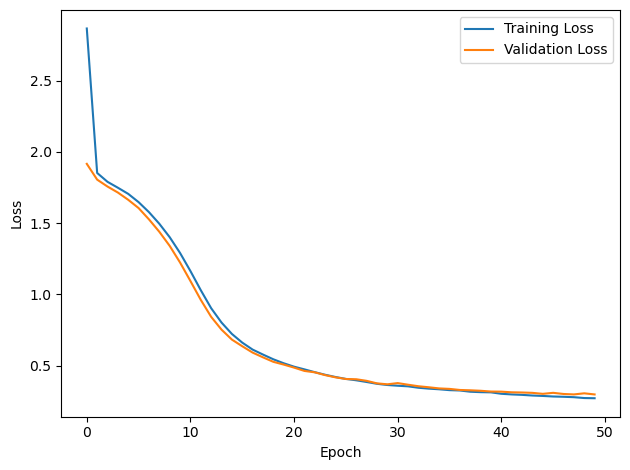

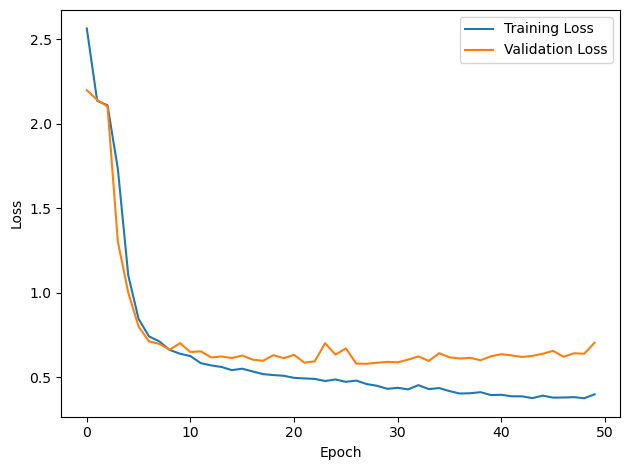

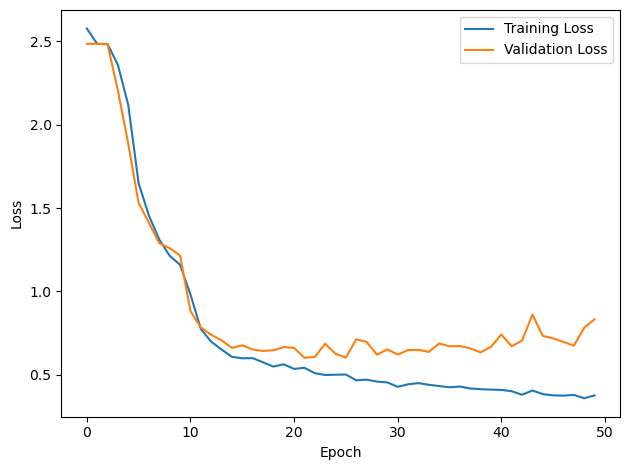

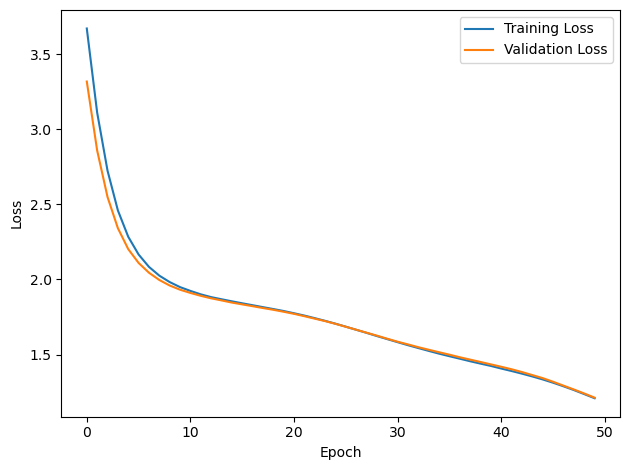

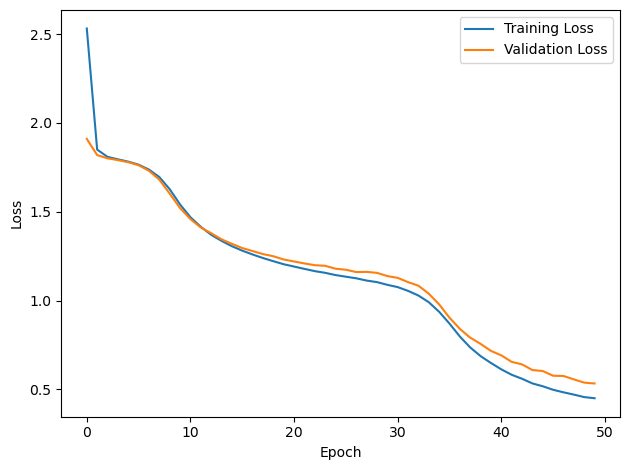

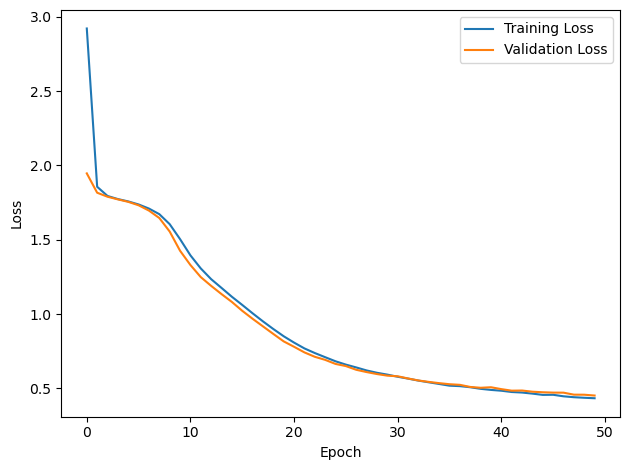

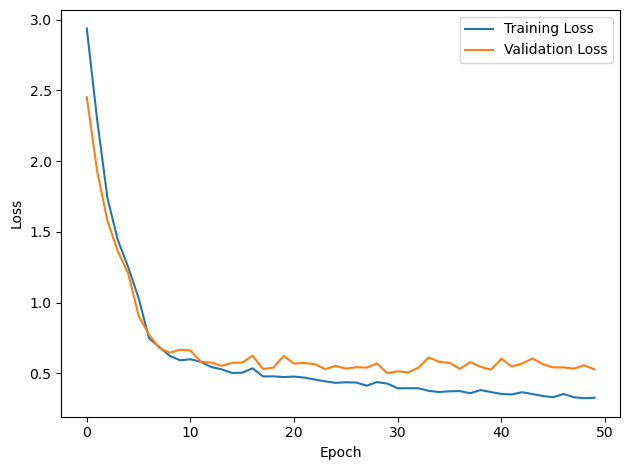

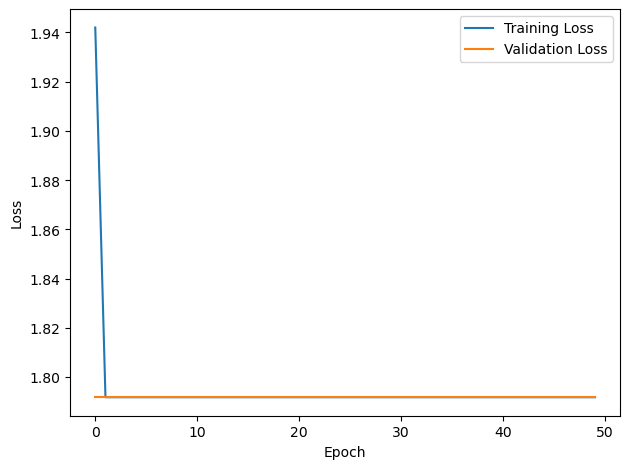

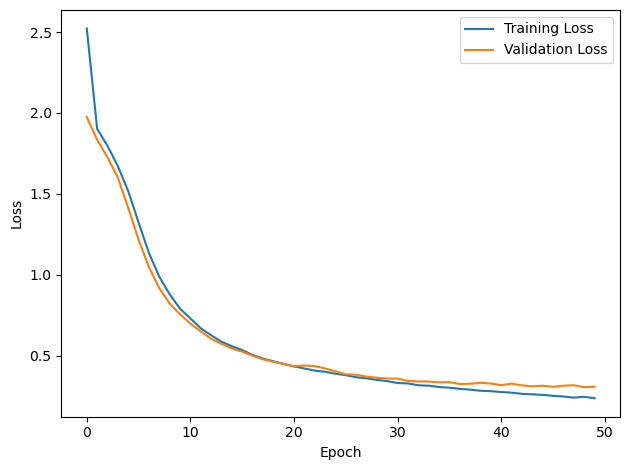

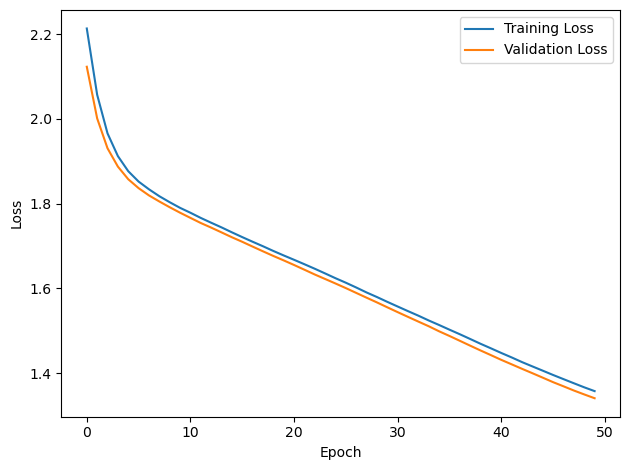

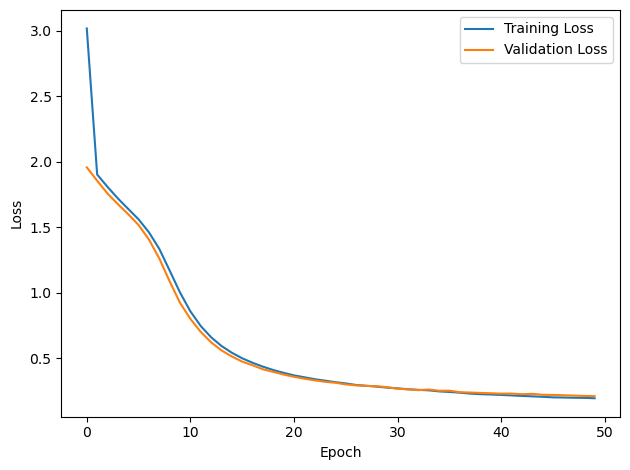

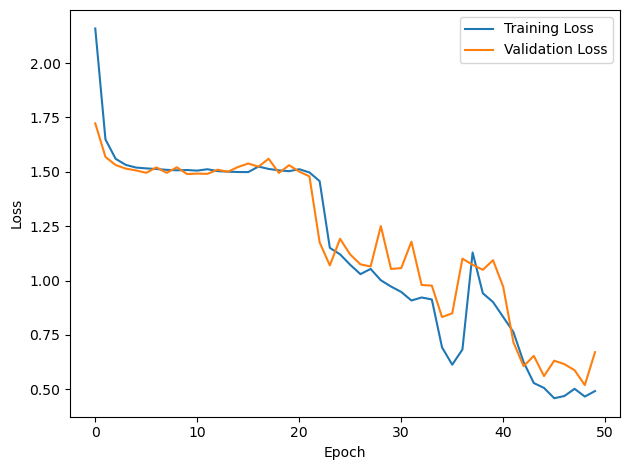

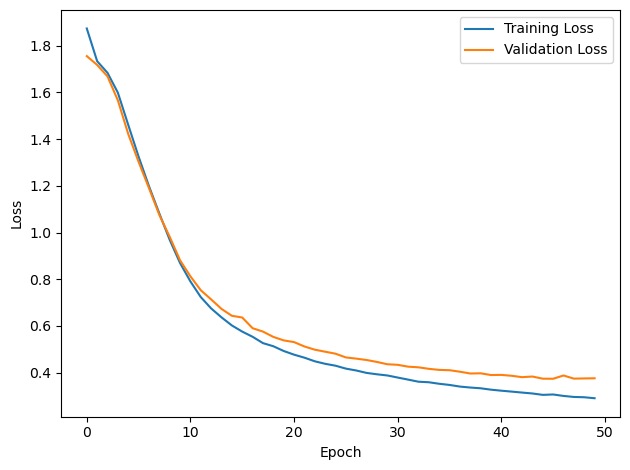

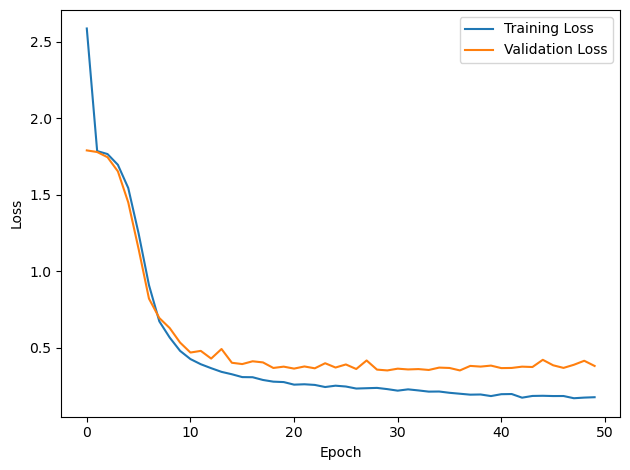

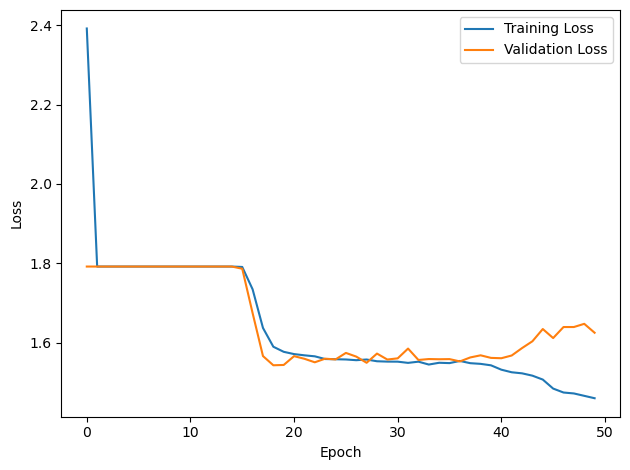

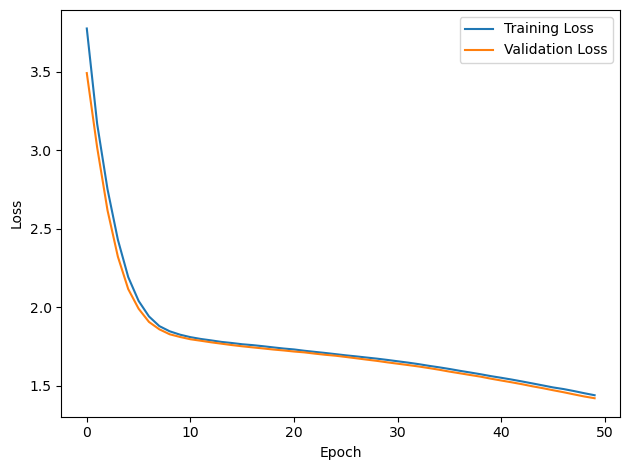

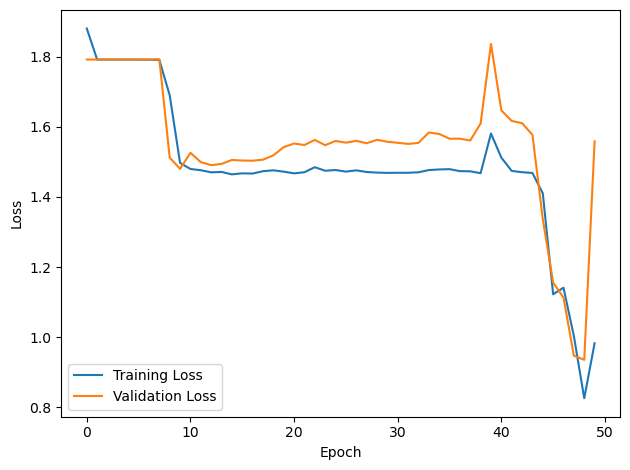

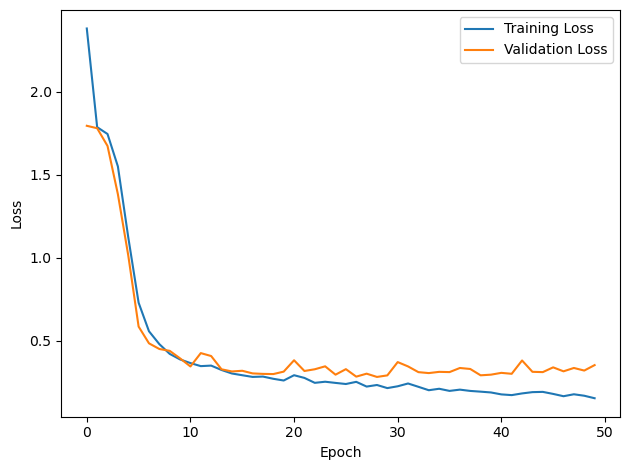

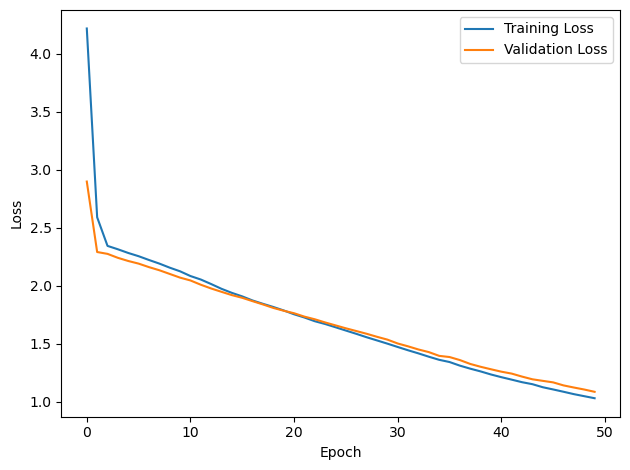

    # Plot the loss function over time
    plt.plot(loss_hist, label='Training Loss')
    plt.xlabel('Epoch')
    plt.ylabel('Loss')
    plt.legend()
    plt.tight_layout()

    plt.plot(val_loss_hist, label='Validation Loss')
    plt.xlabel('Epoch')
    plt.ylabel('Loss')
    plt.legend()

    #plt.tight_layout()
    plt.show()

    if DALES_LAW:
        return get_signed_weights(w1, signs[0]), get_signed_weights(w2, signs[1]), signs
    else:
        return w1, w2, signs

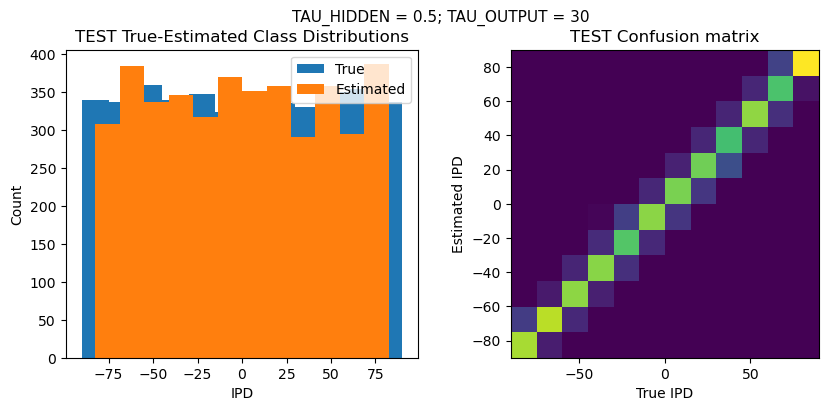

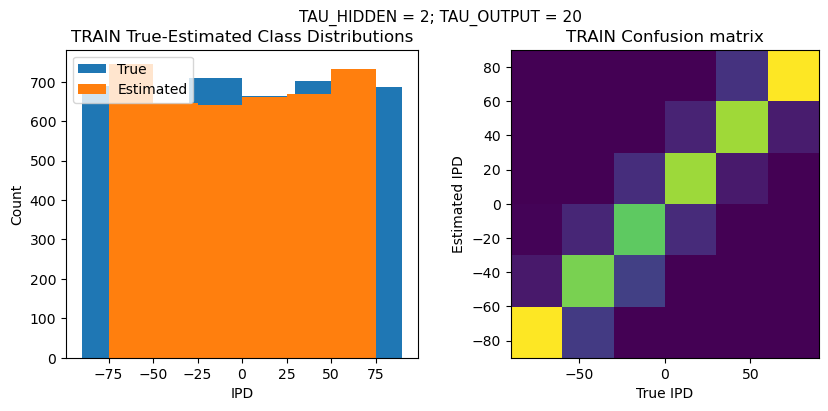

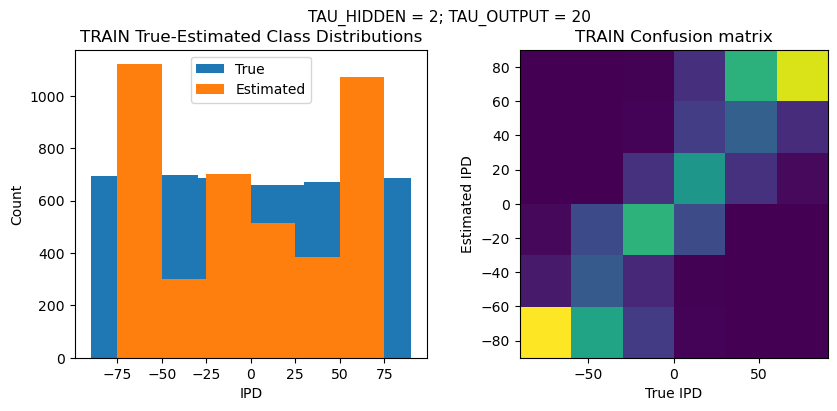

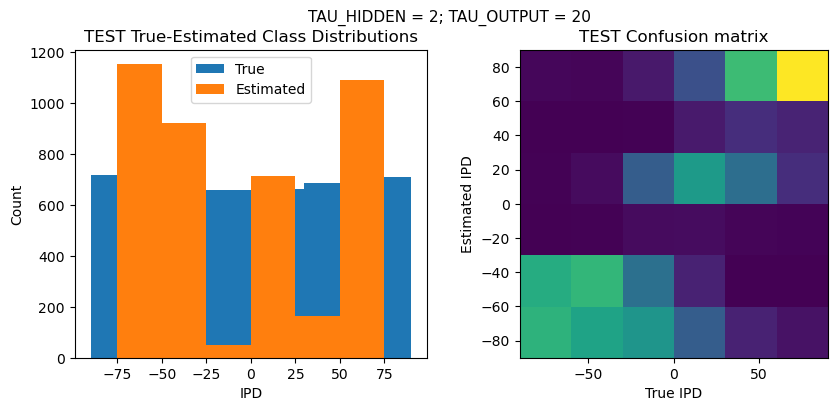

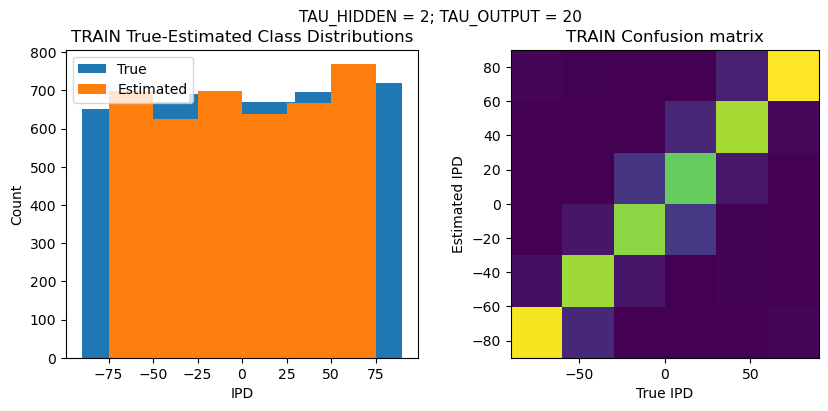

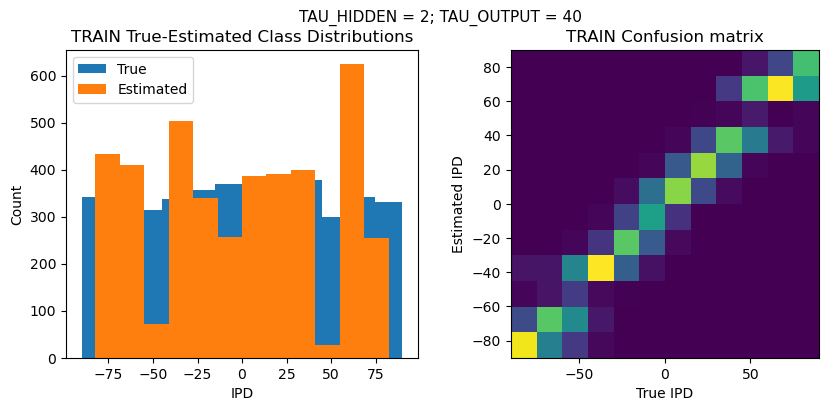

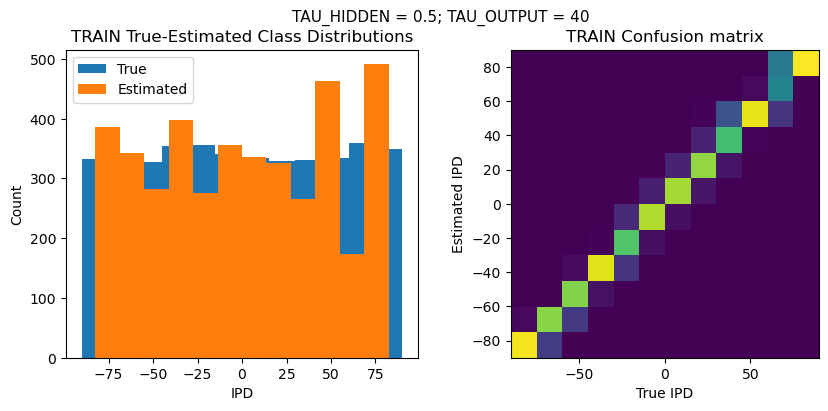

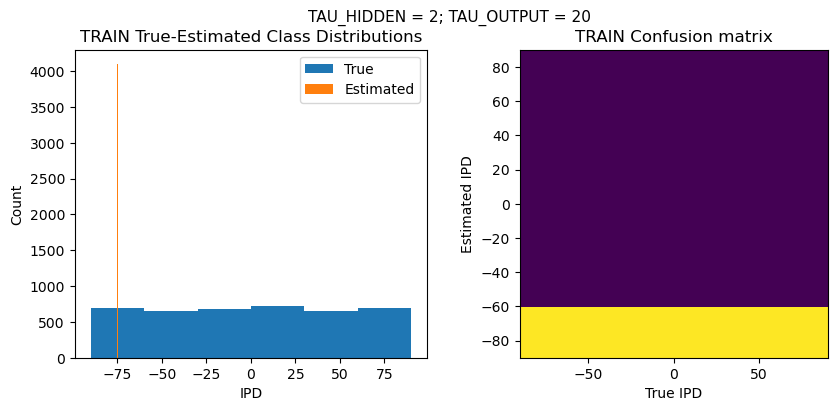

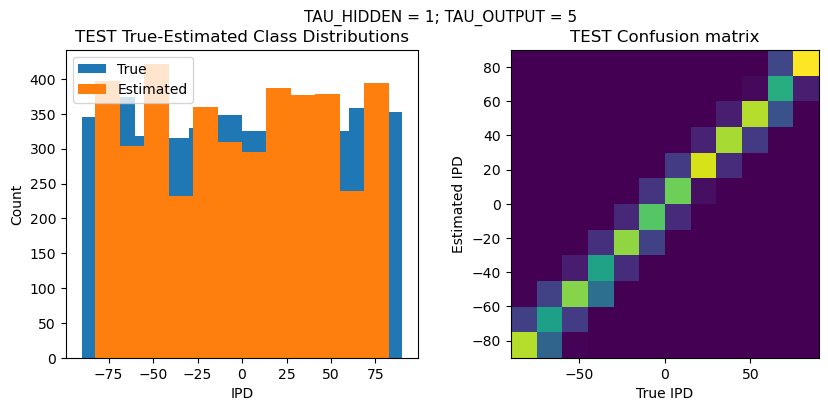

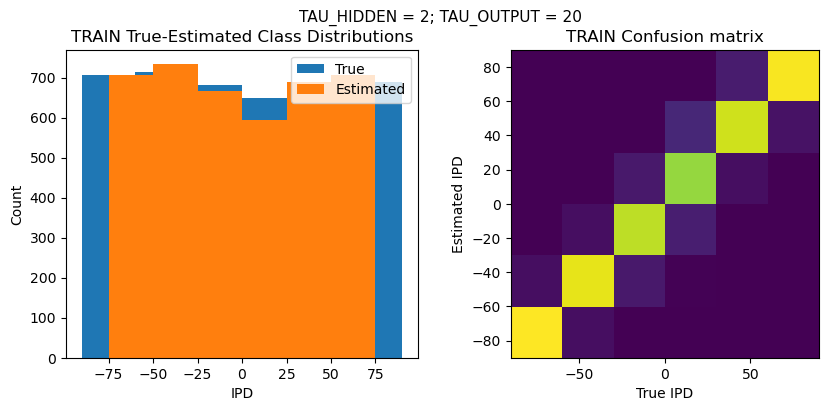

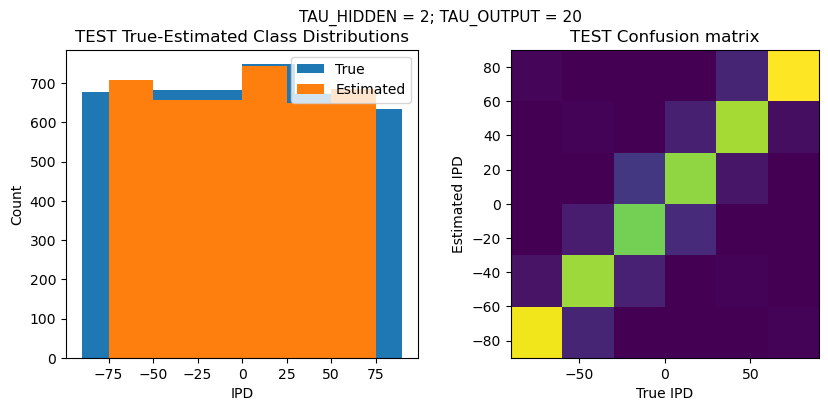

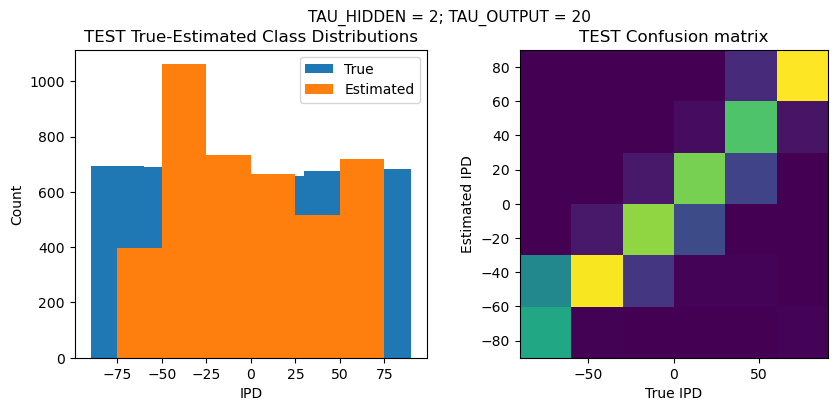

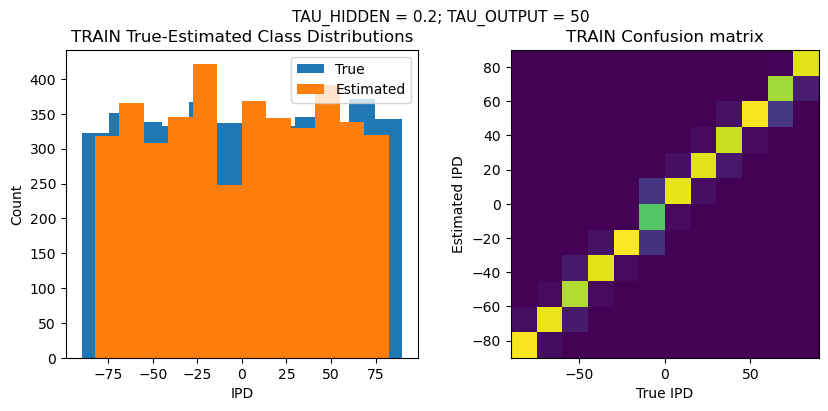

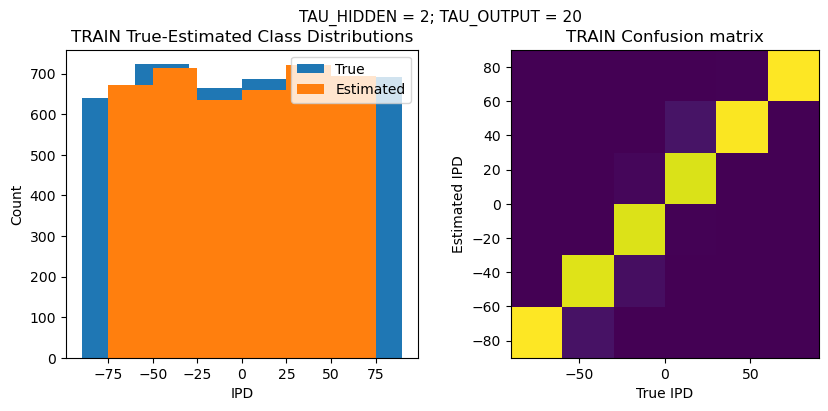

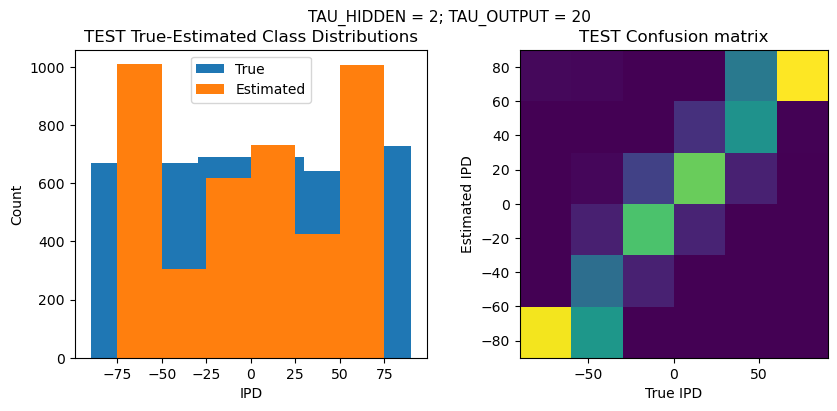

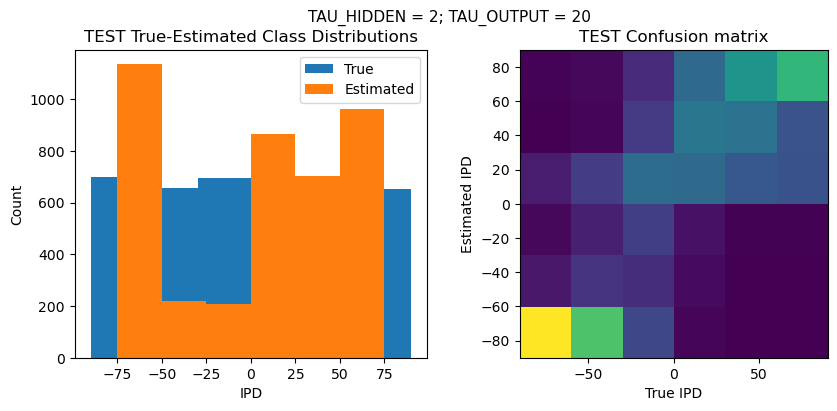

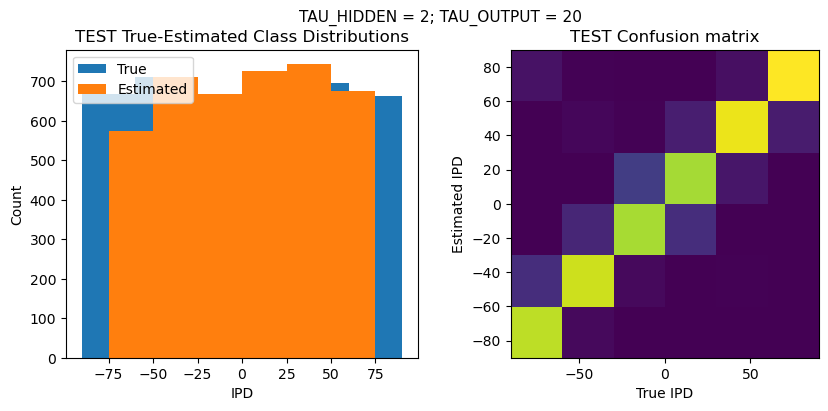

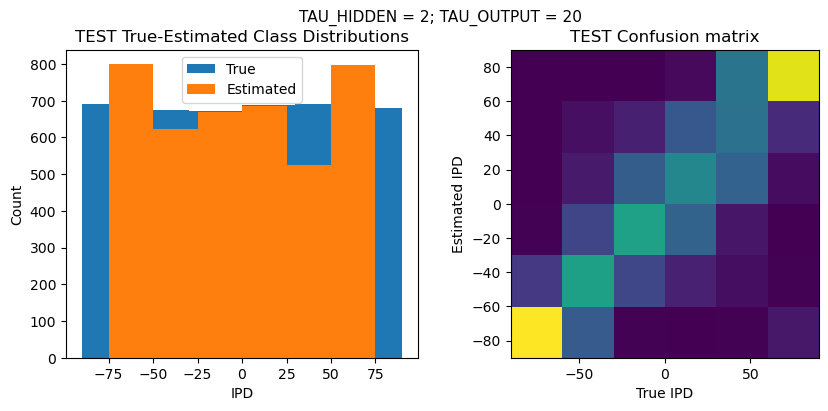

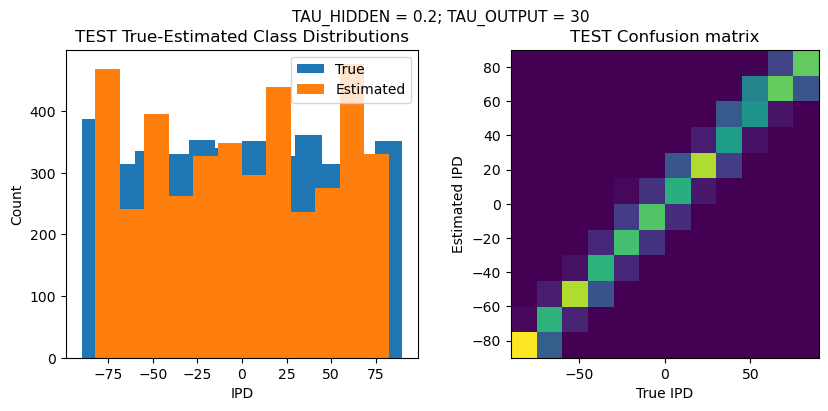

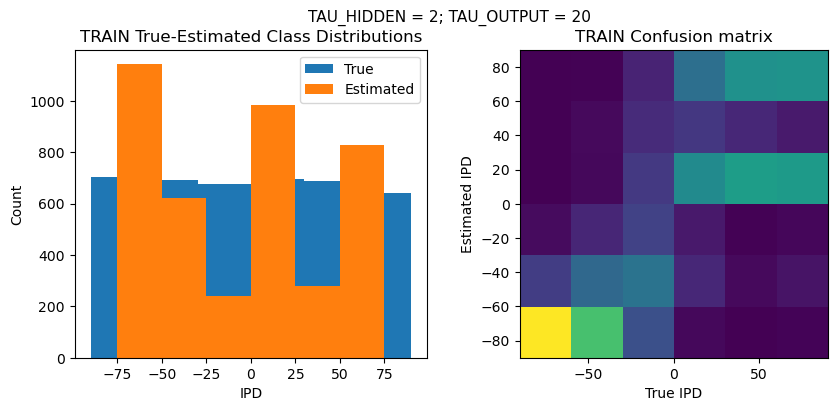

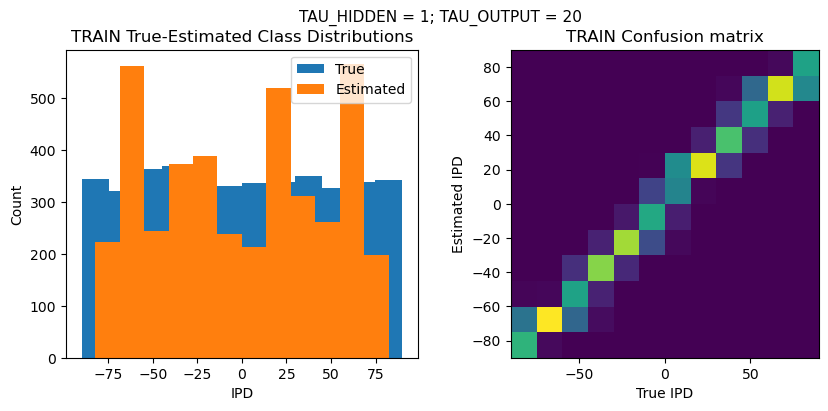

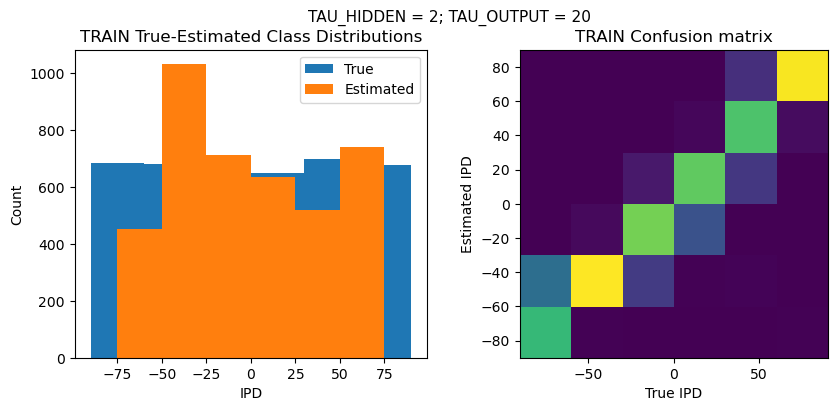

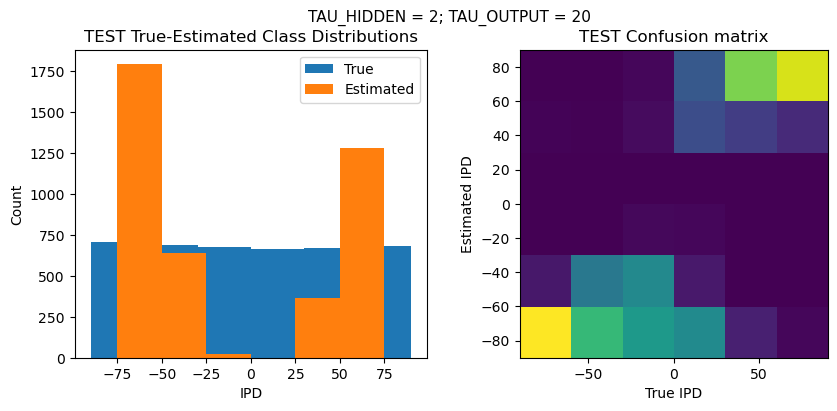

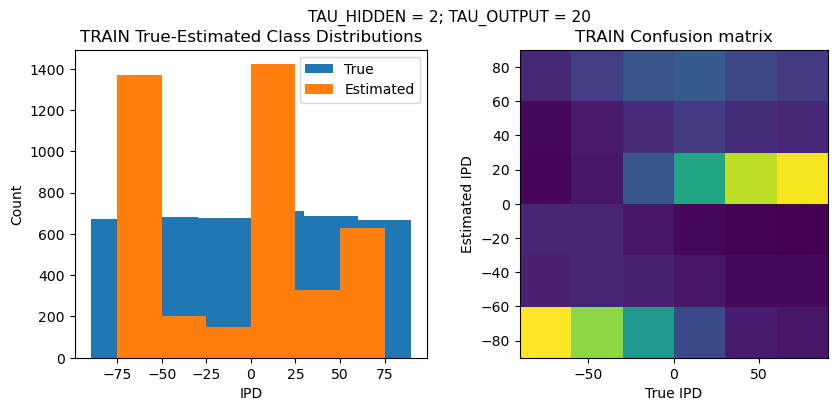

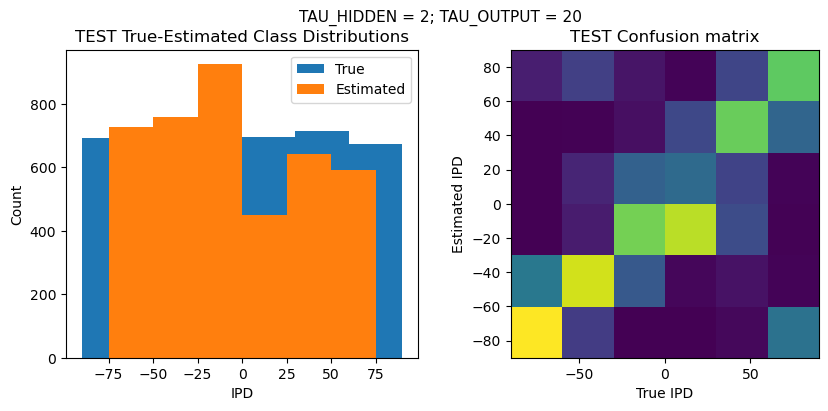

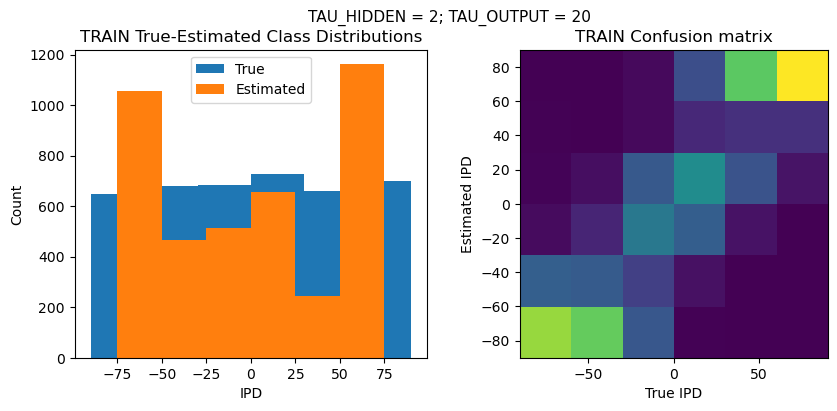

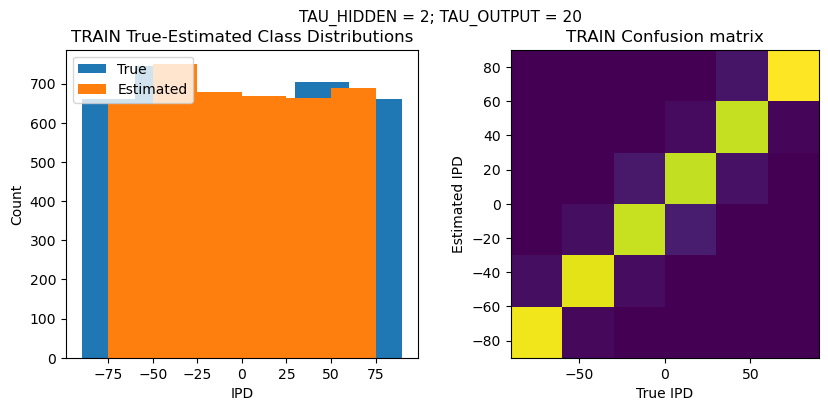

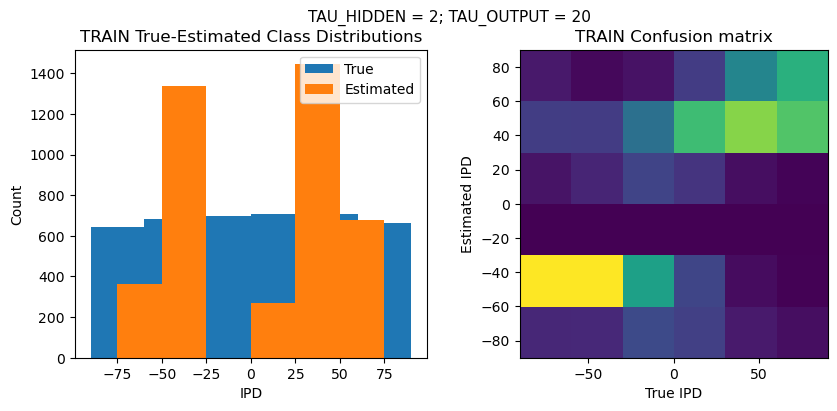

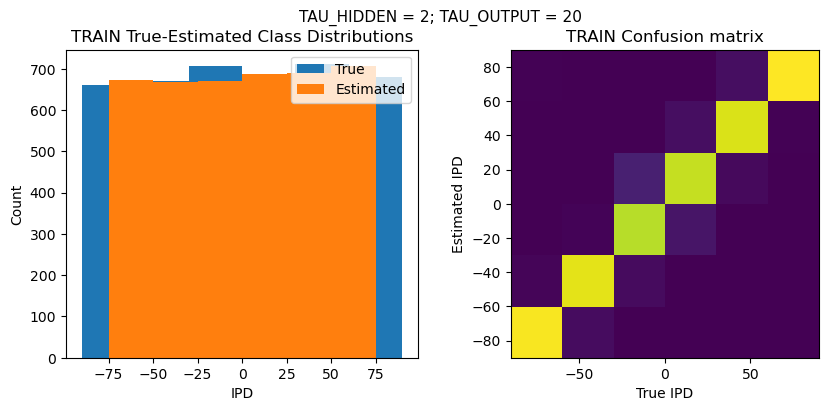

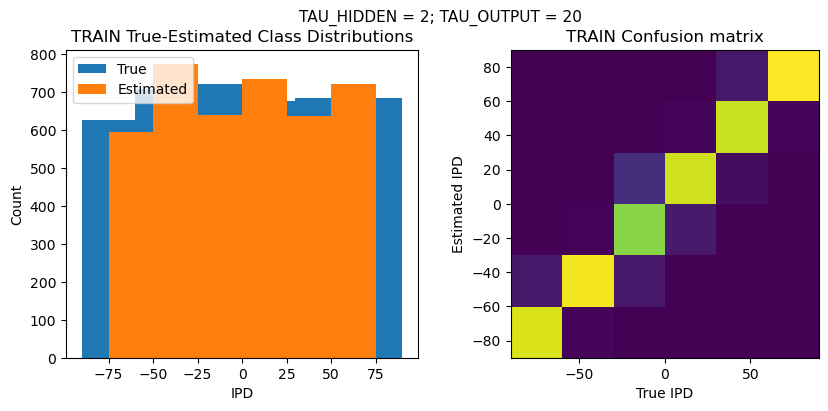

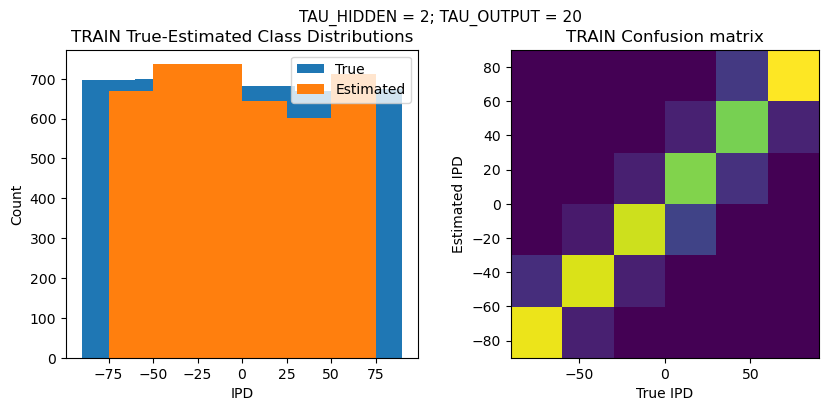

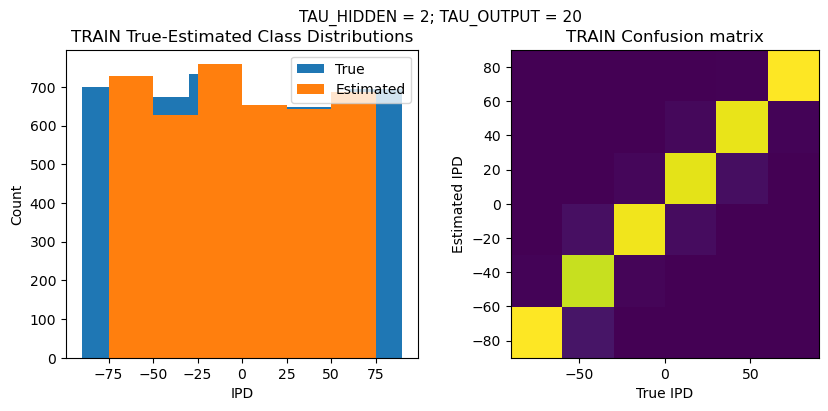

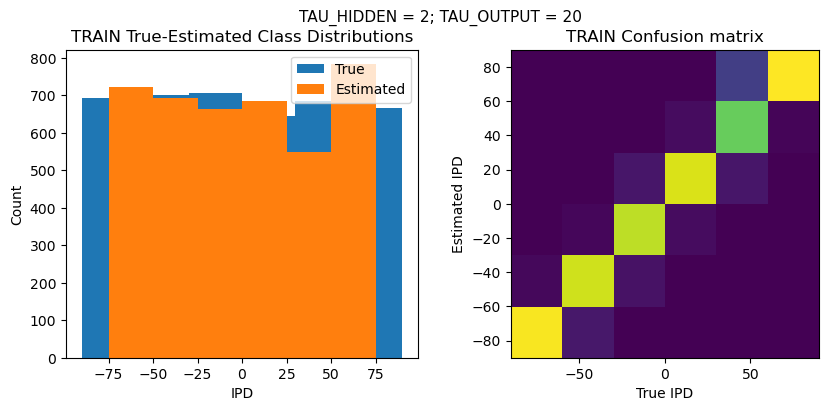

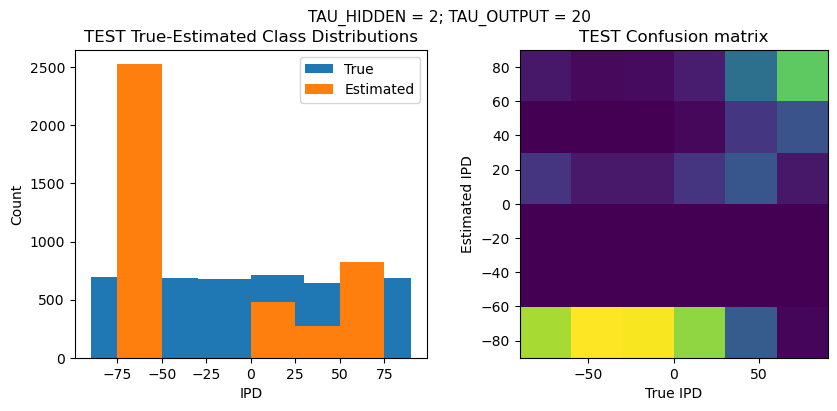

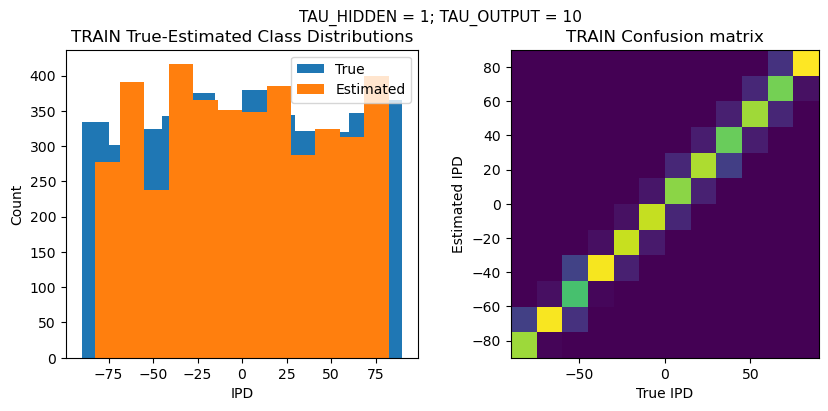

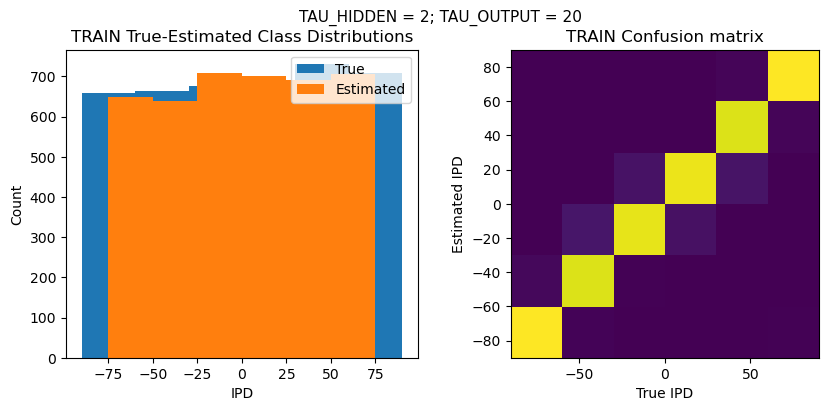

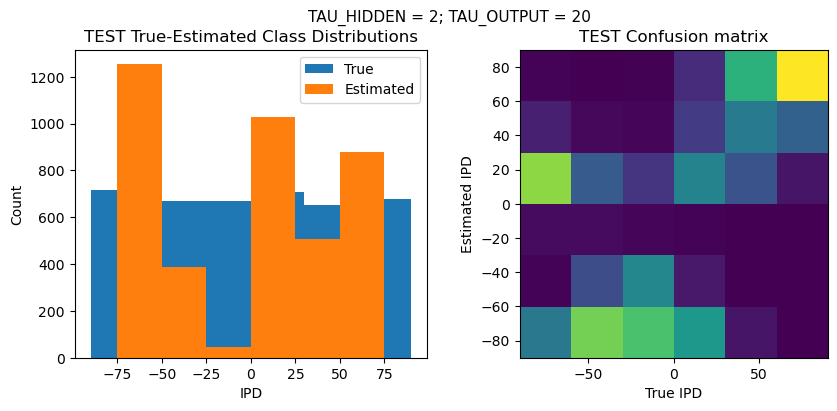

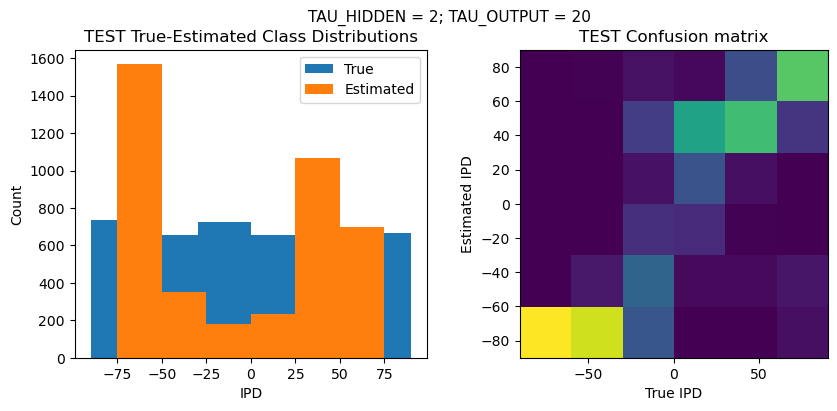

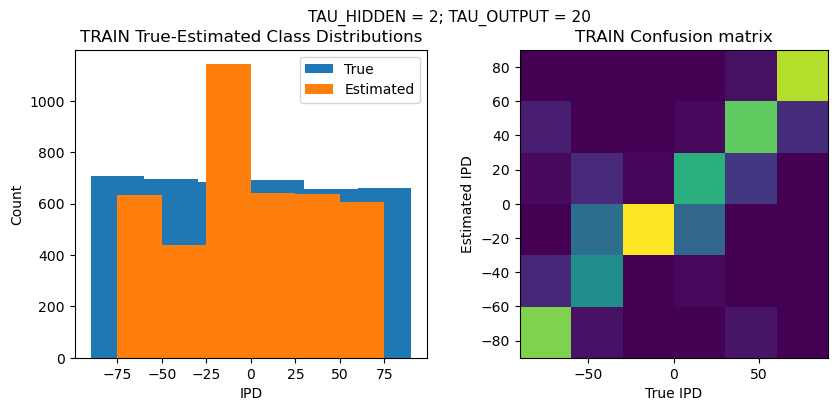

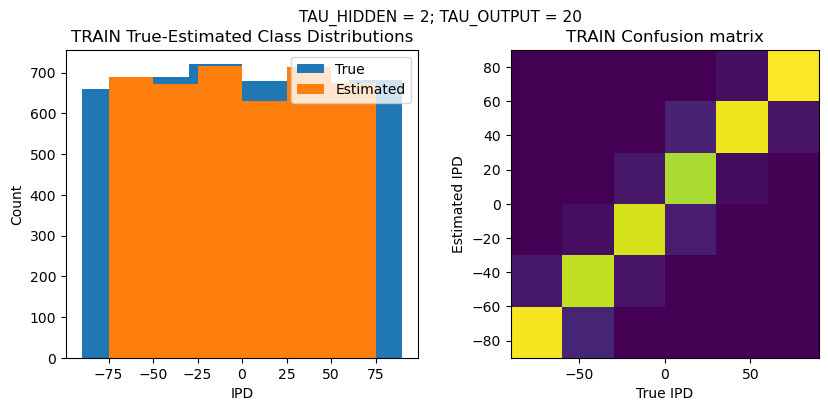

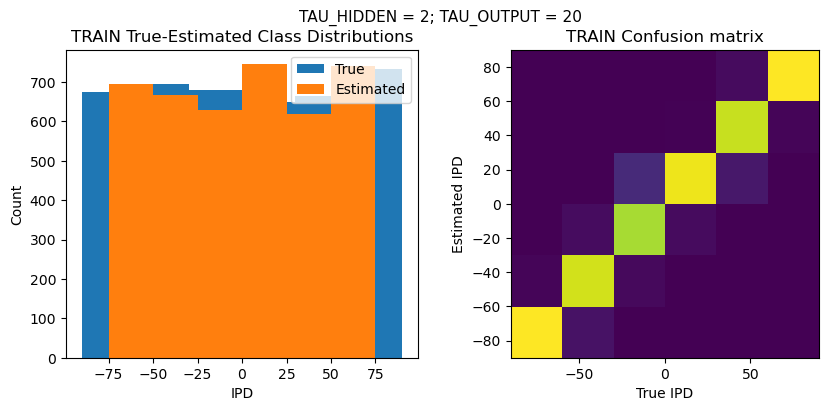

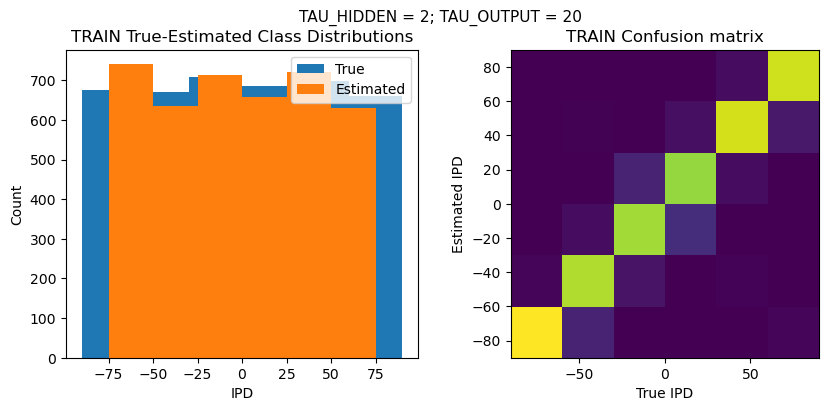

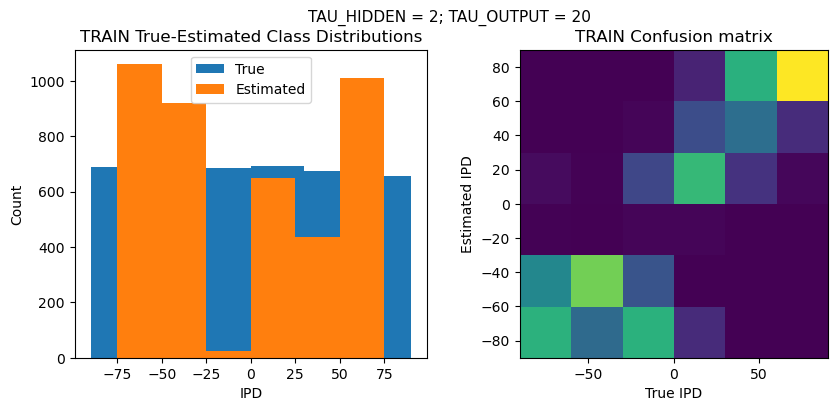

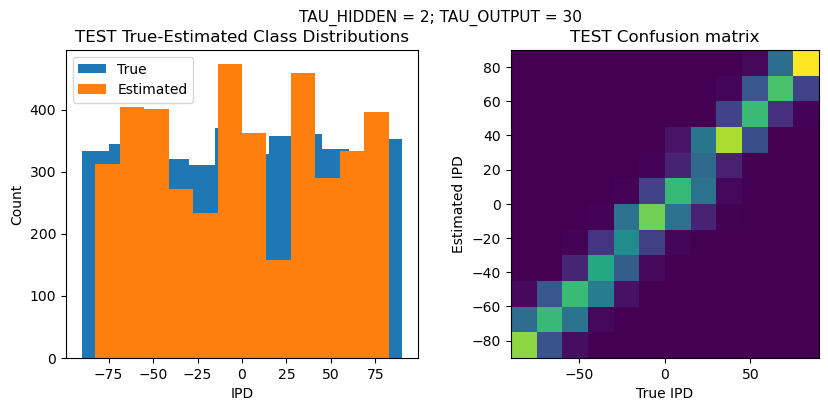

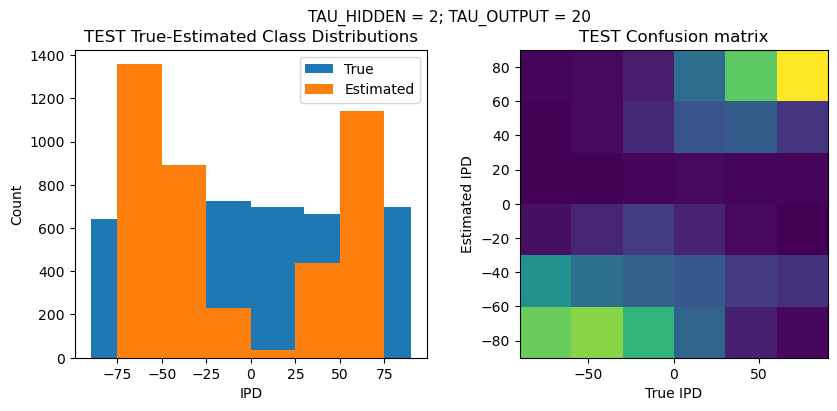

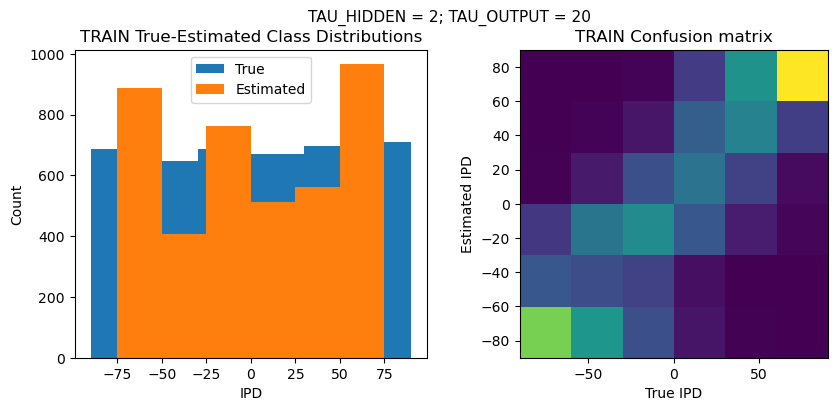

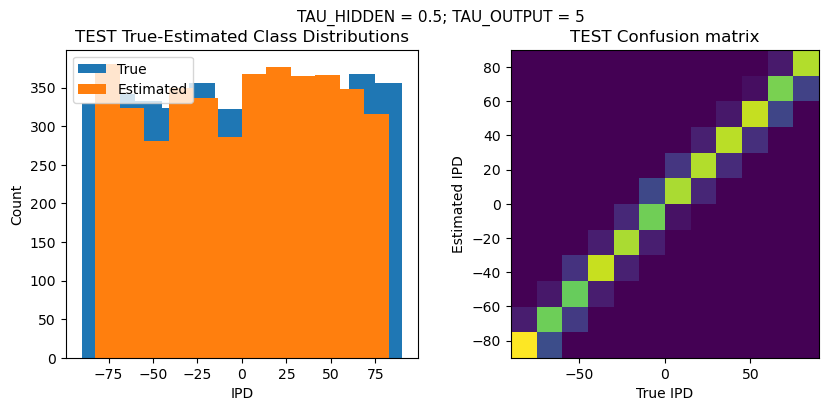

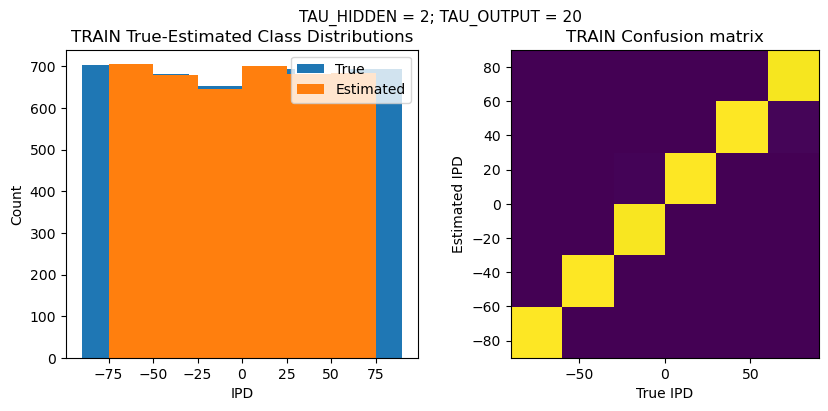

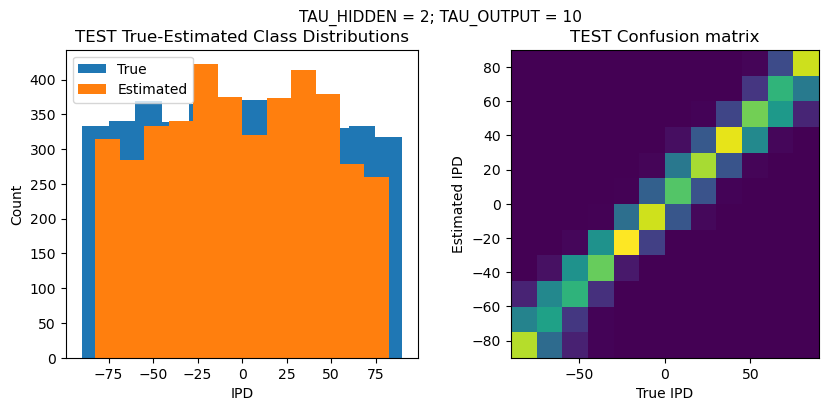

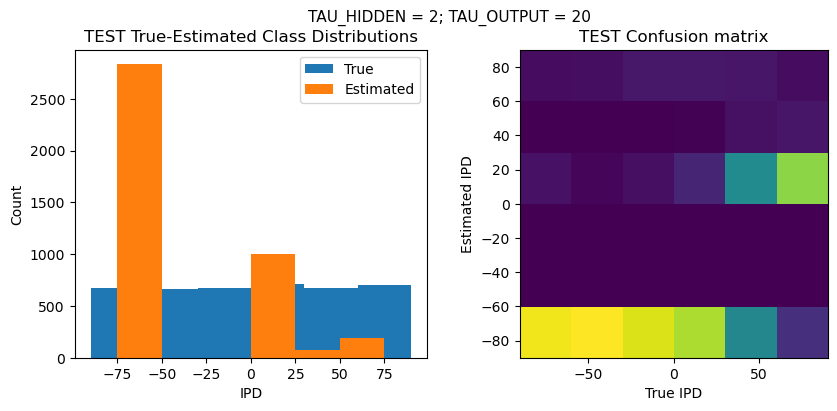

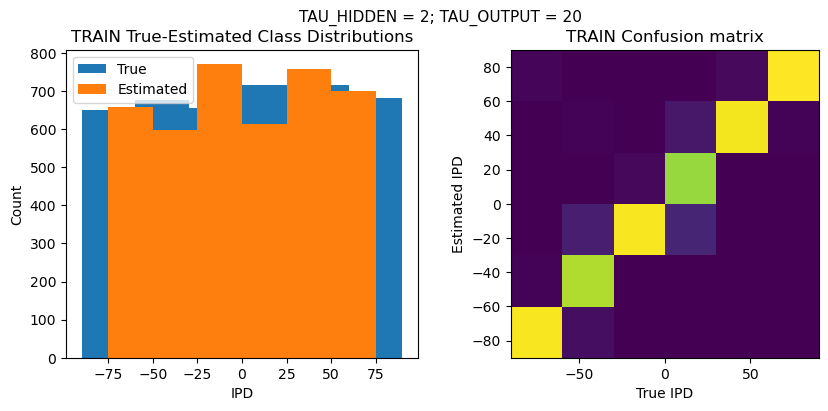

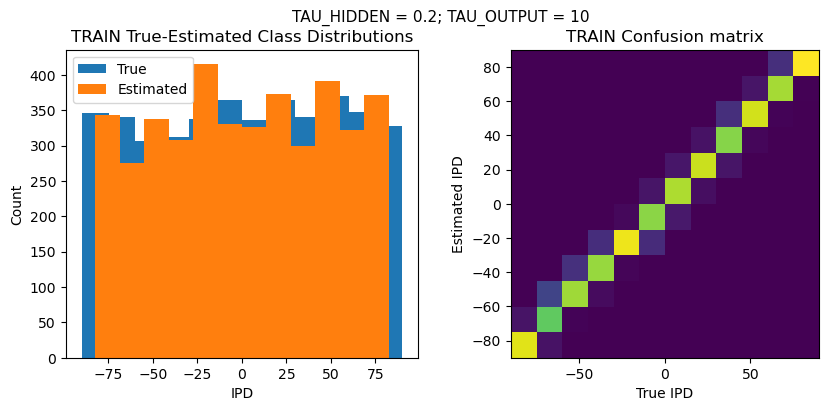

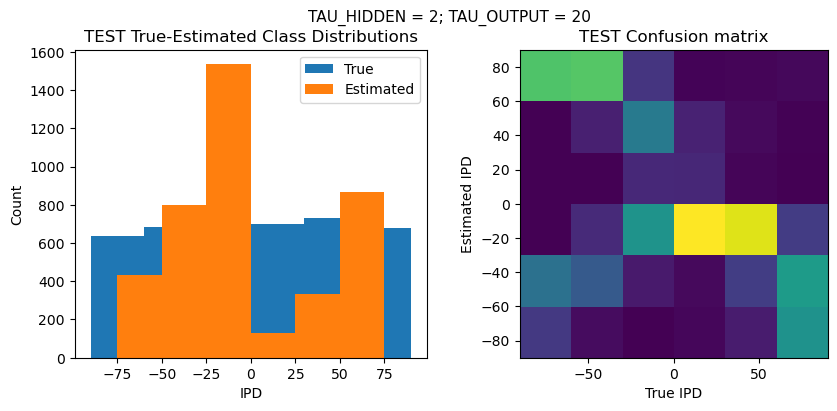

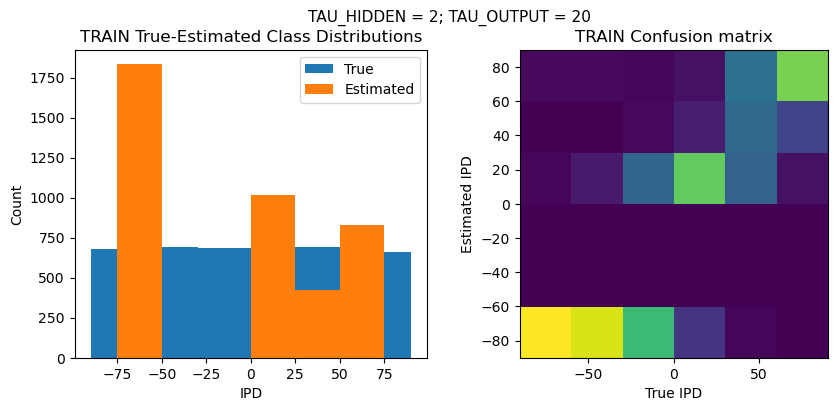

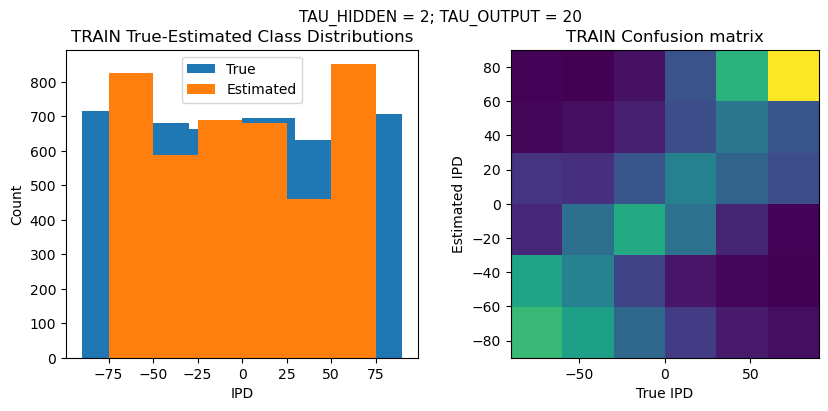

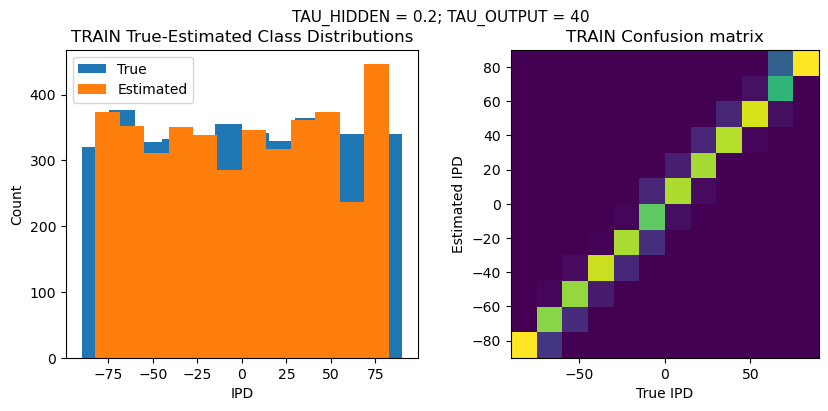

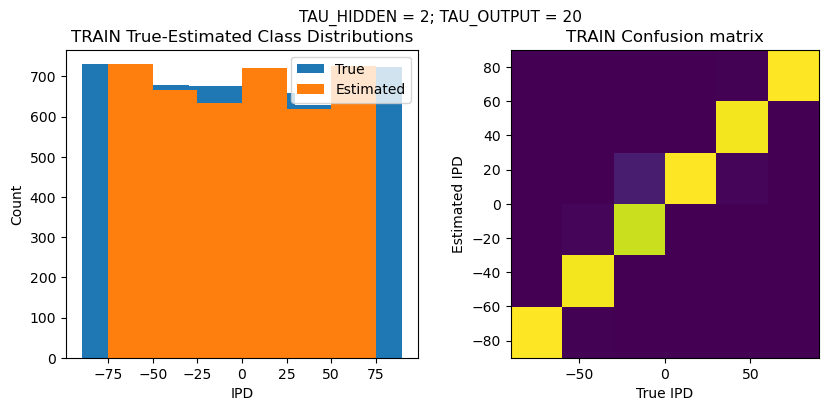

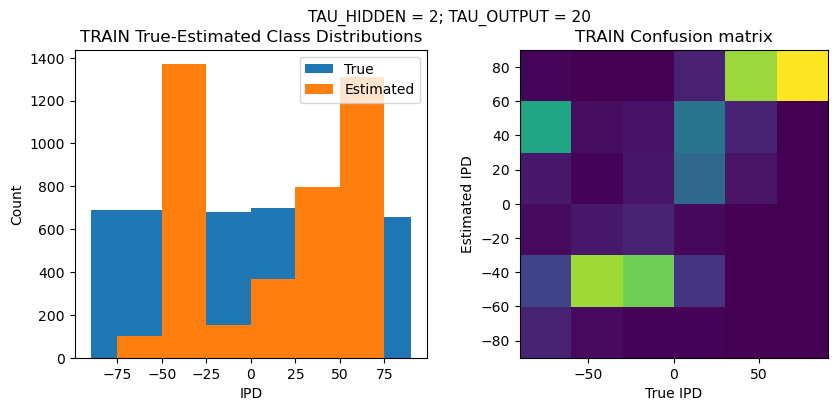

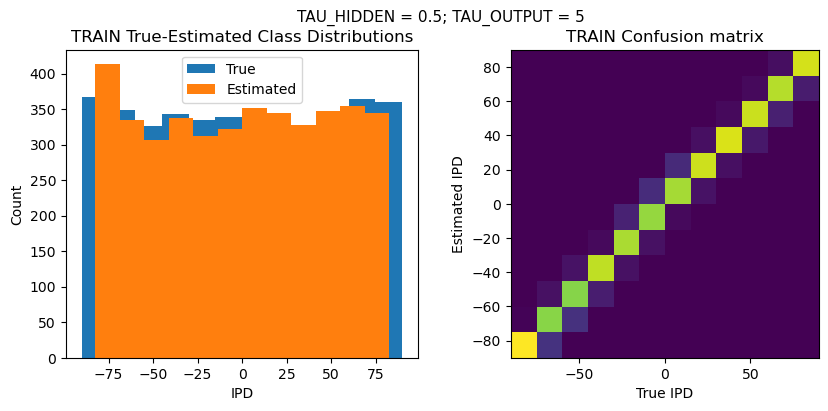

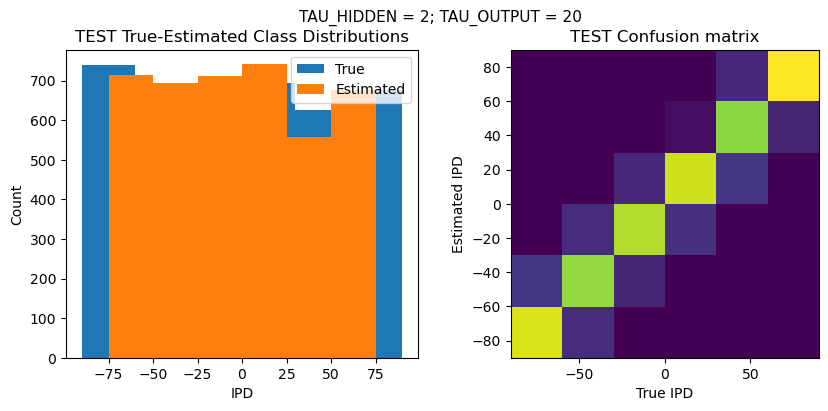

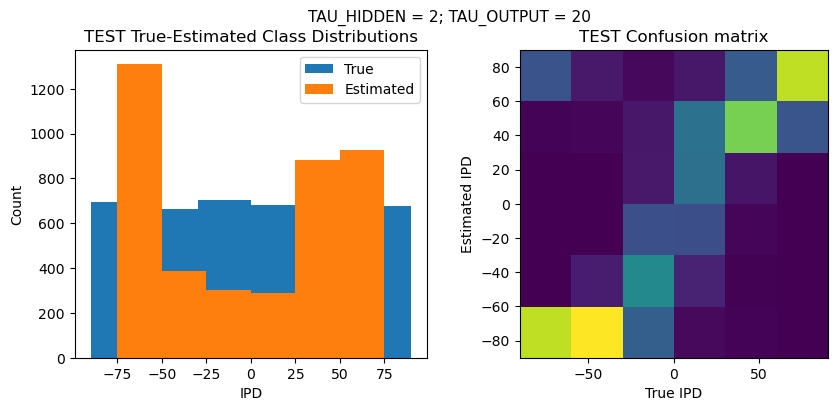

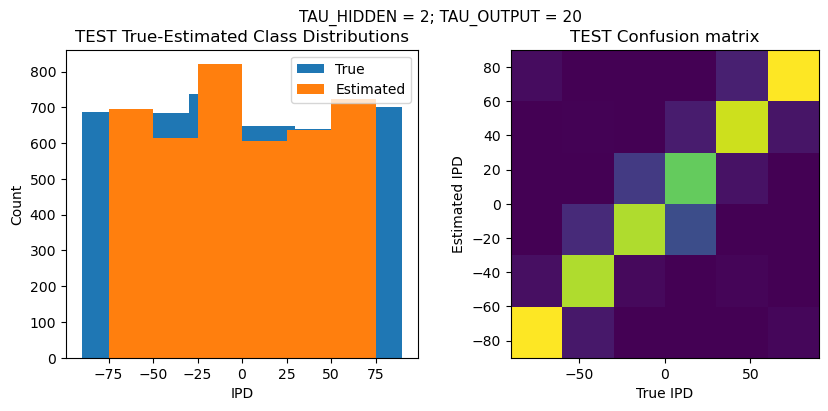

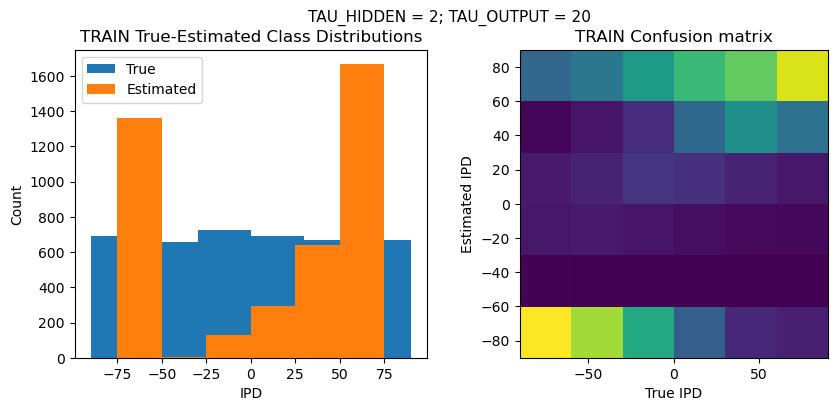

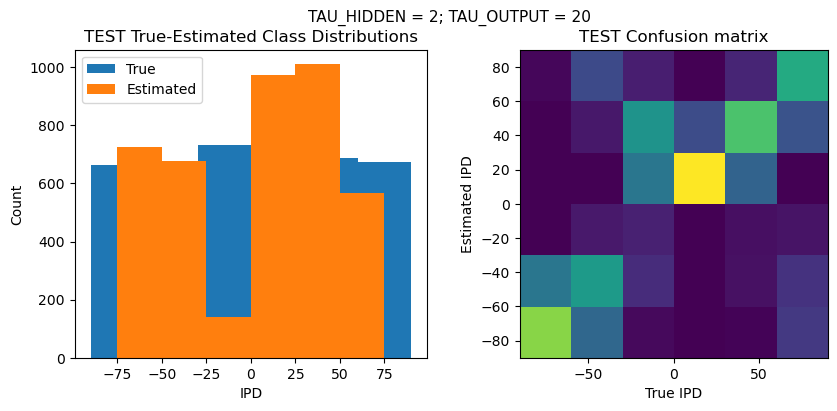

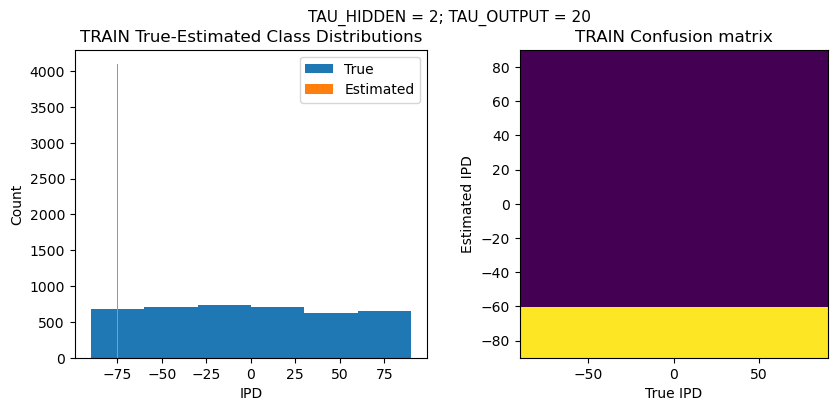

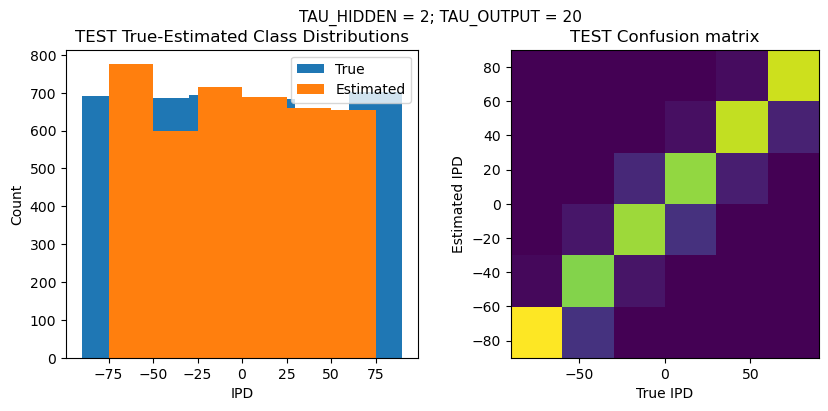

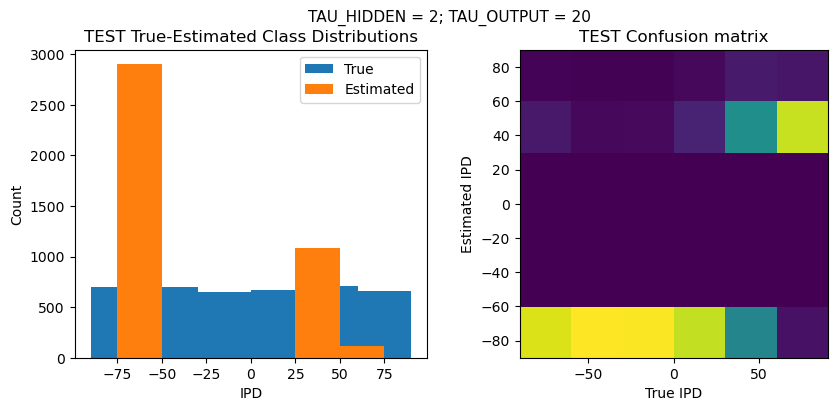

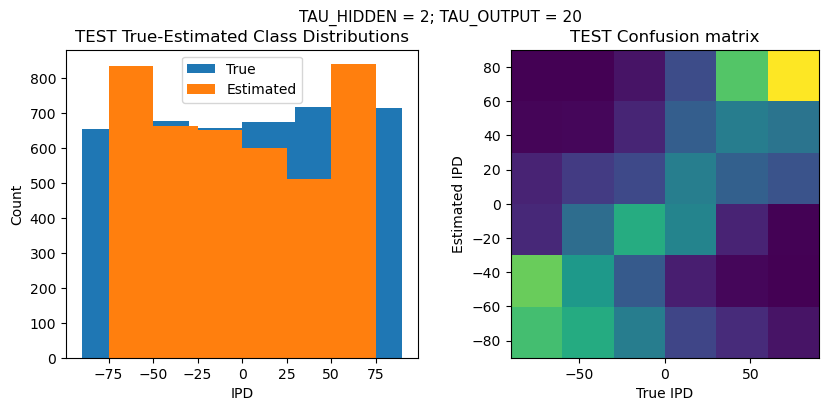

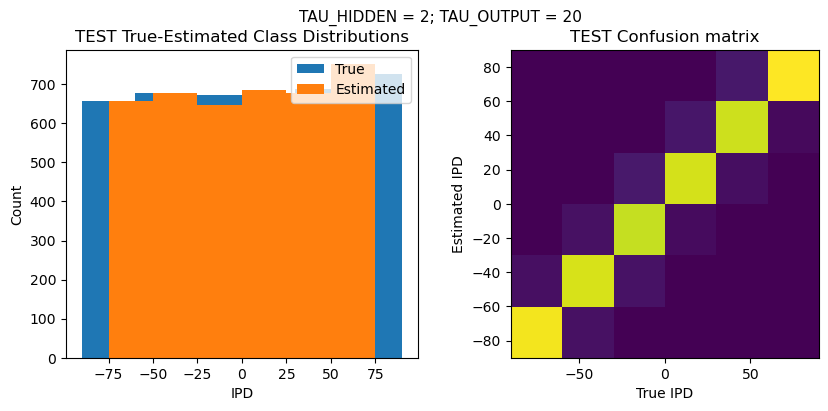

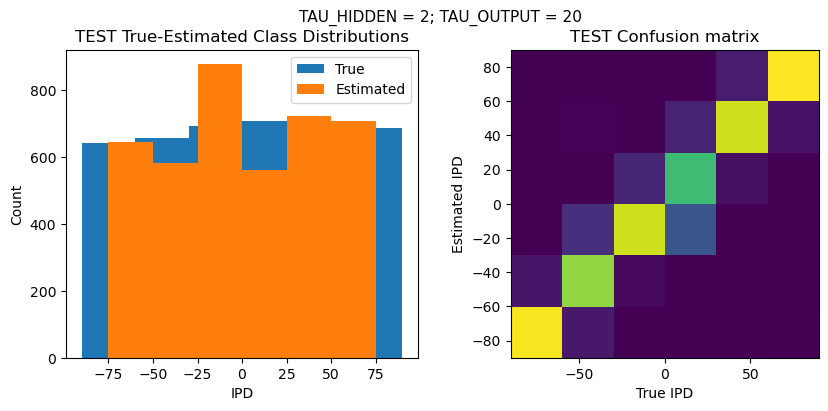

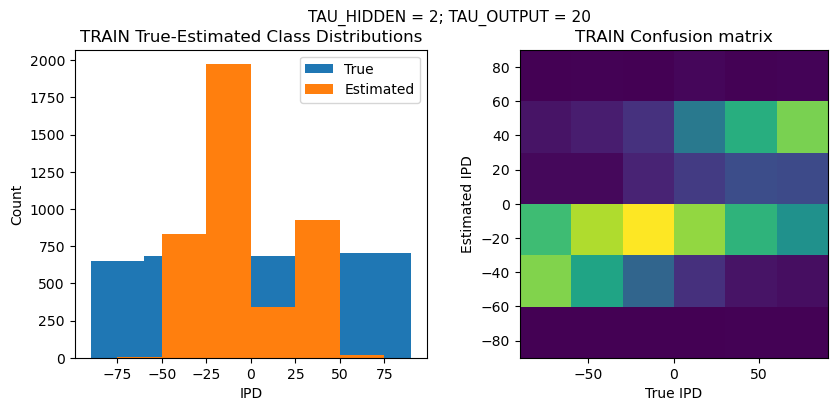

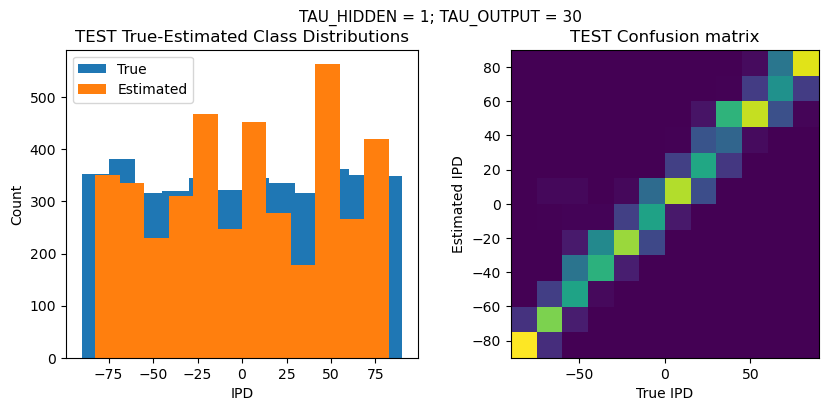

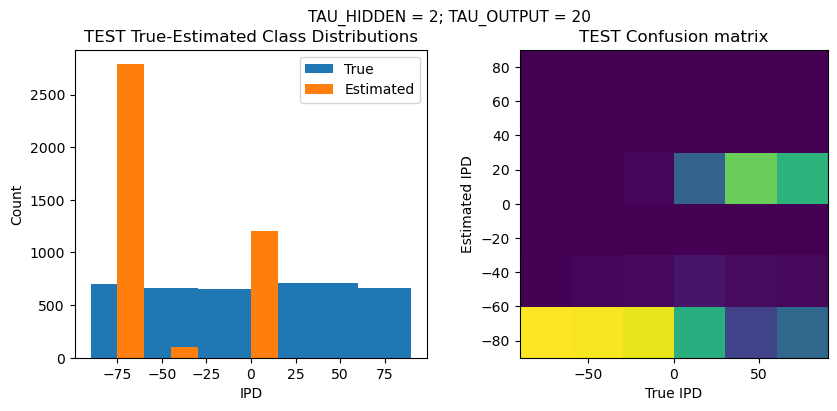

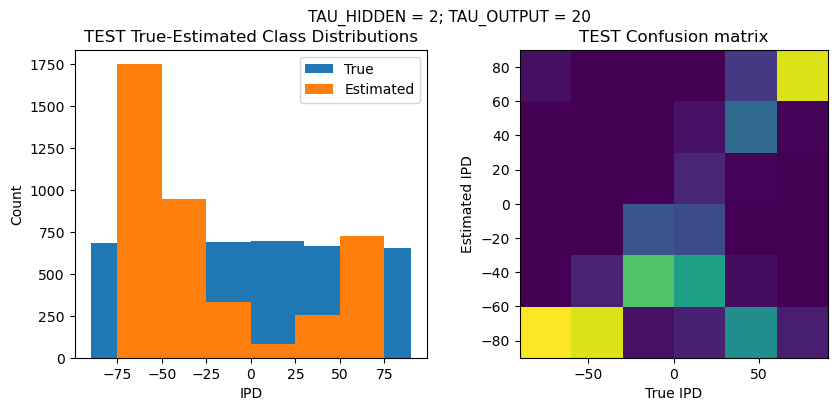

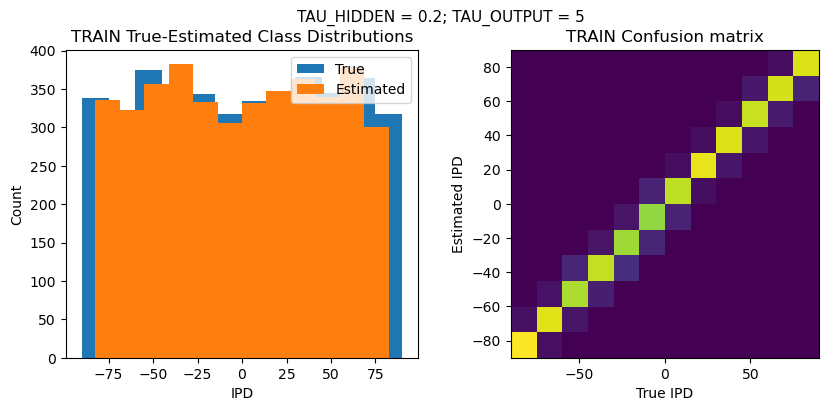

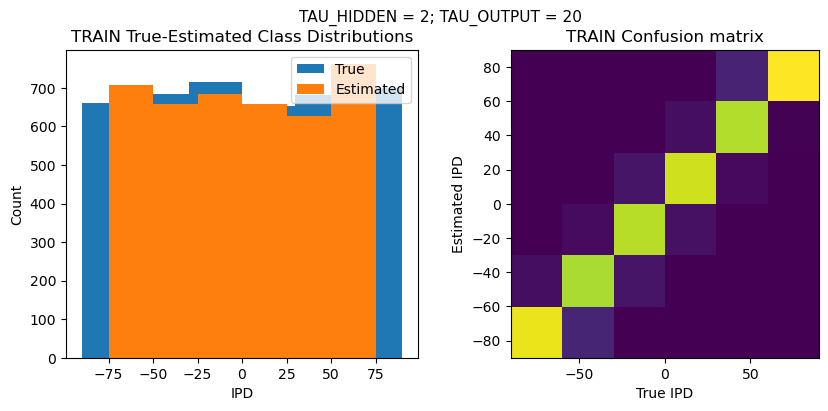

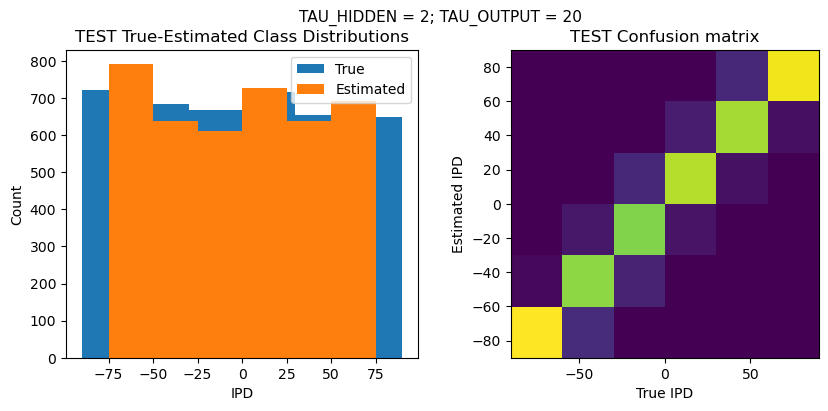

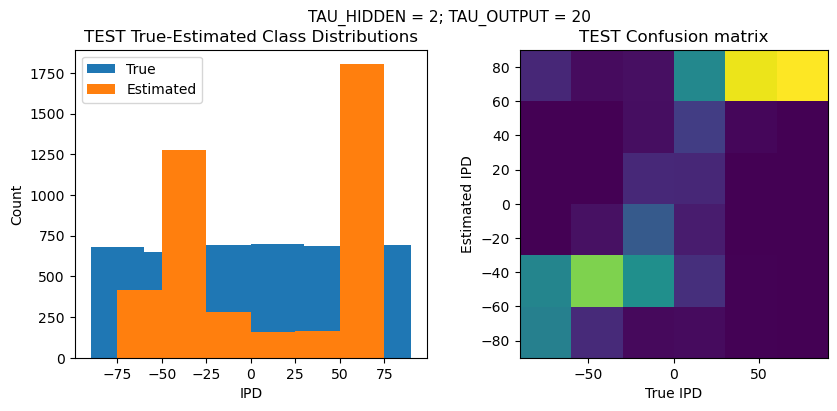

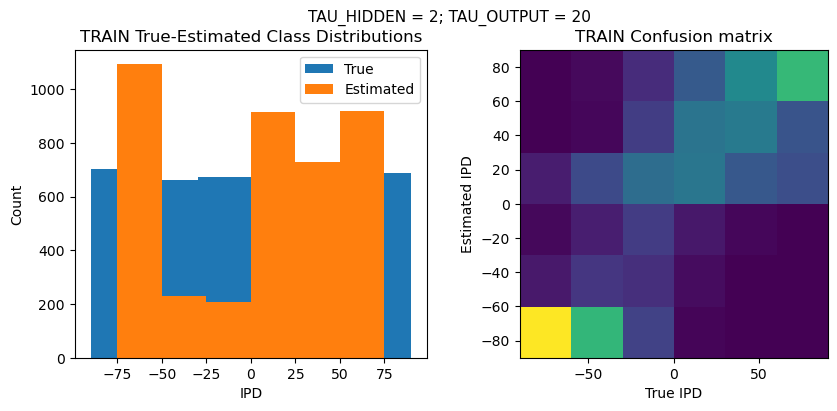

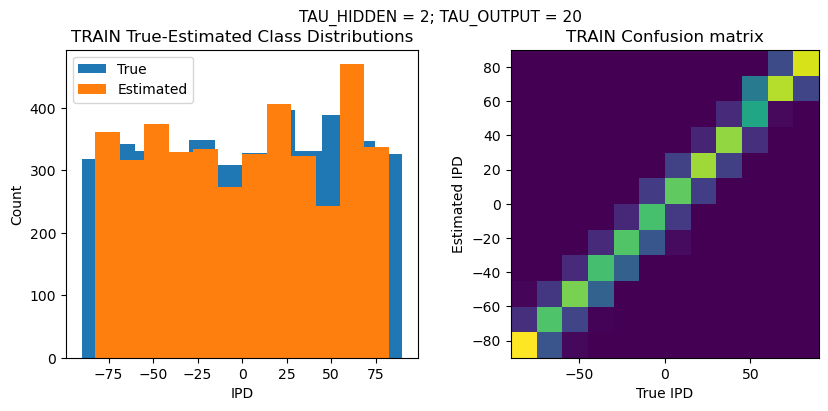

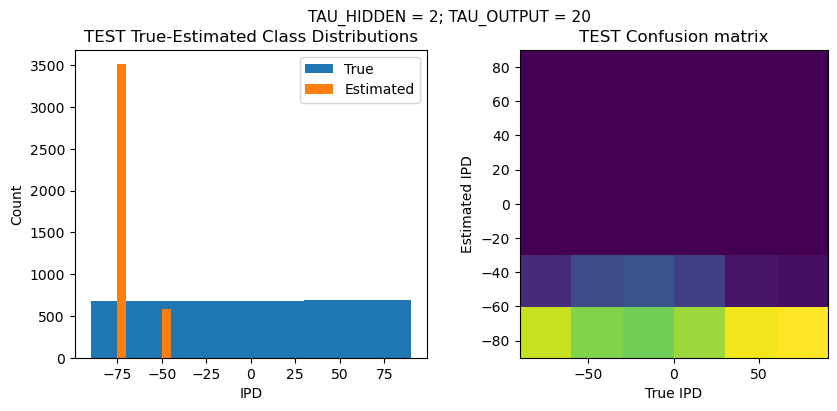

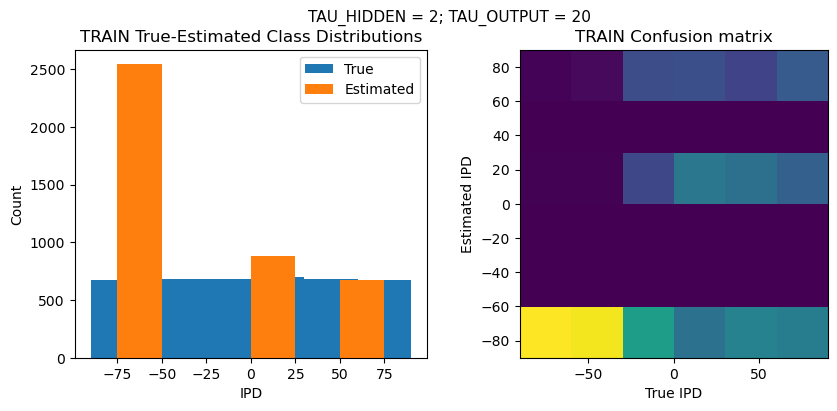

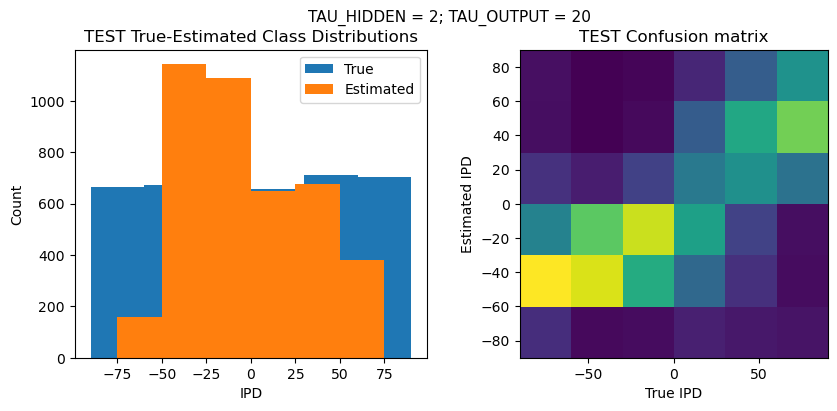

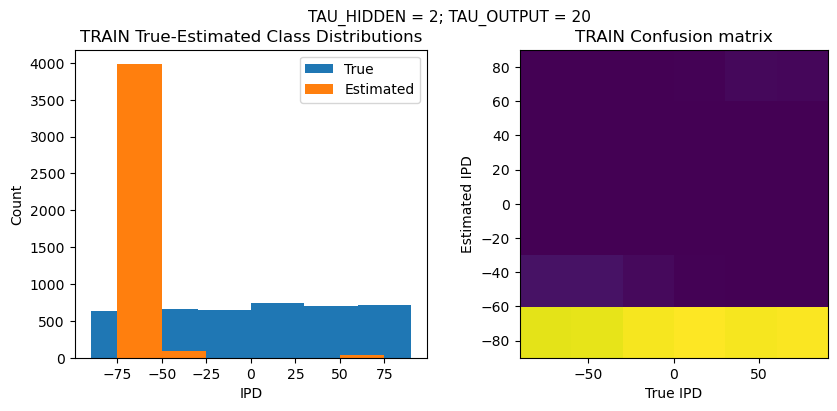

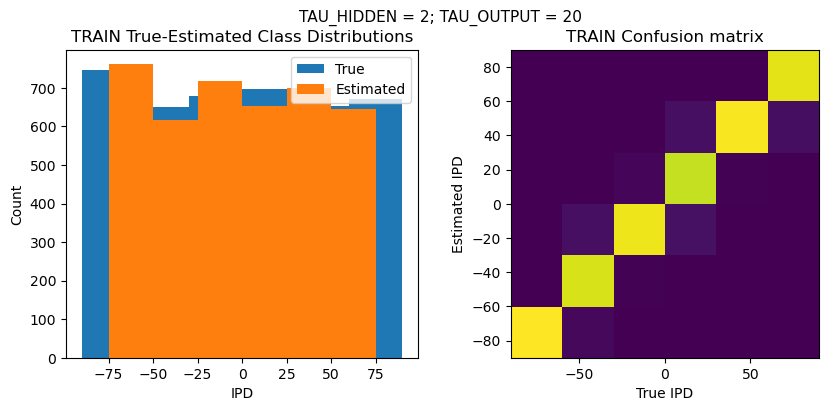

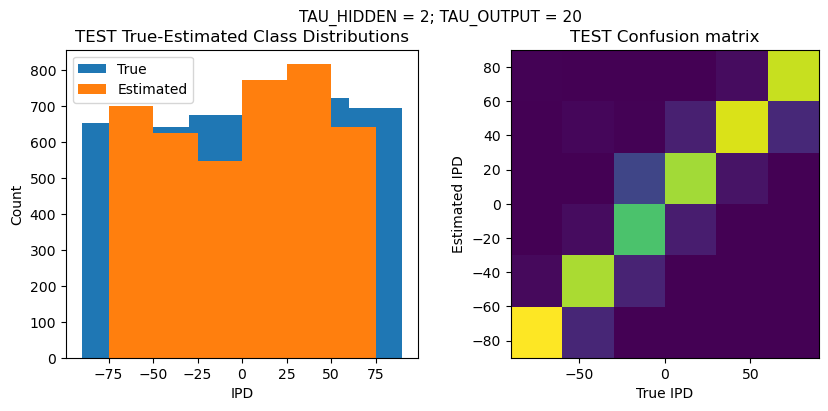

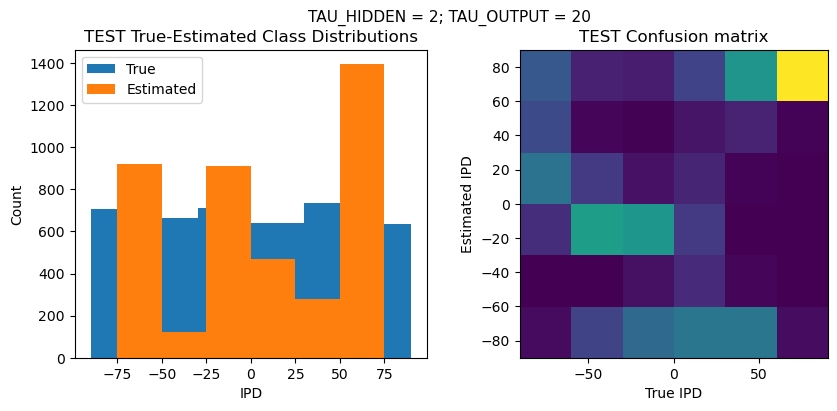

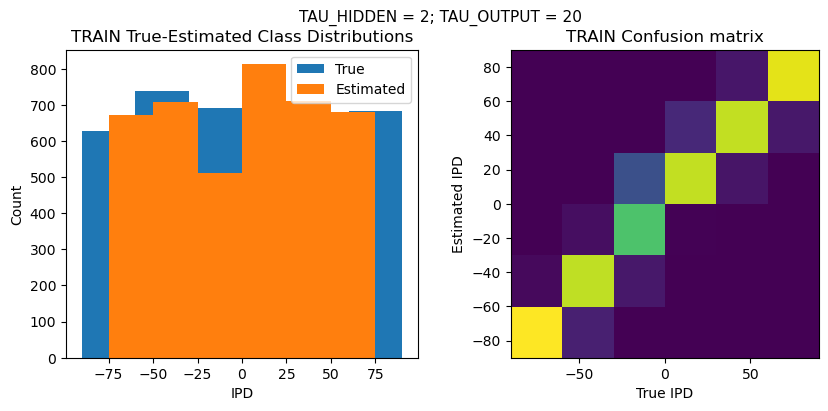

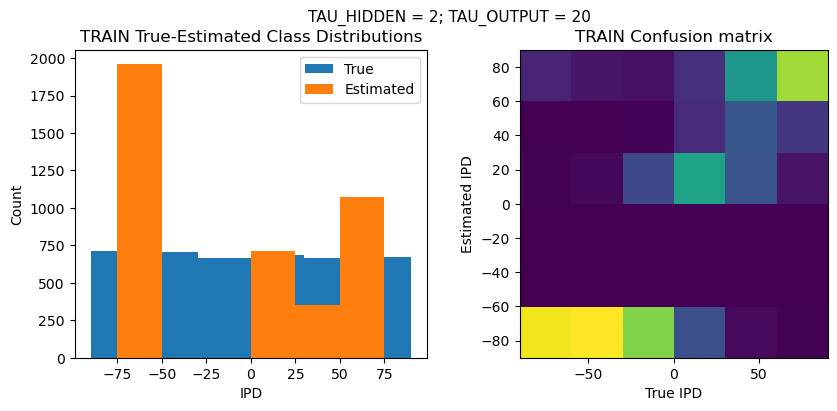

def test_accuracy(ipds, spikes, run):
    accs = []
    ipd_true = []
    ipd_est = []
    confusion = np.zeros((NUM_CLASSES, NUM_CLASSES))
    for x_local, y_local in data_generator(ipds, spikes):
        y_local_orig = y_local
        y_local = discretise(y_local)
        output = run(x_local)
        #m = torch.sum(output, 1)  # Sum time dimension
        m = torch.mean(output, 1)
        _, am = torch.max(m, 1)  # argmax over output units
        tmp = np.mean((y_local == am).detach().cpu().numpy())  # compare to labels
        for i, j in zip(y_local.detach().cpu().numpy(), am.detach().cpu().numpy()):
            confusion[j, i] += 1
        ipd_true.append(y_local_orig.cpu().data.numpy())
        ipd_est.append(continuise(am.detach().cpu().numpy()))
        accs.append(tmp)

    ipd_true = np.hstack(ipd_true)
    ipd_est = np.hstack(ipd_est)

    return ipd_true, ipd_est, confusion, accs

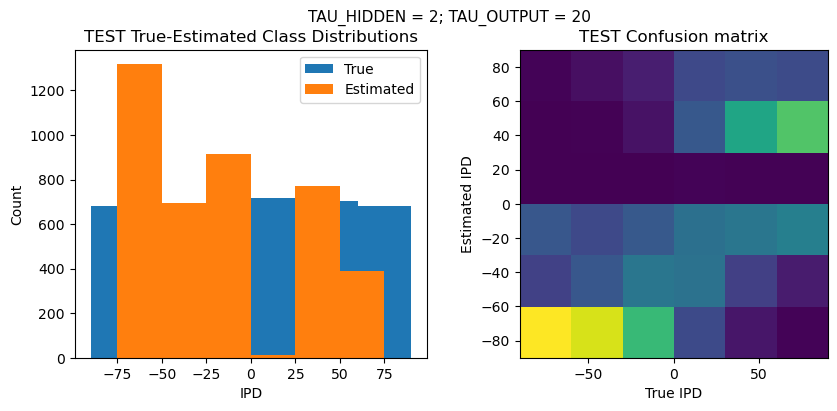

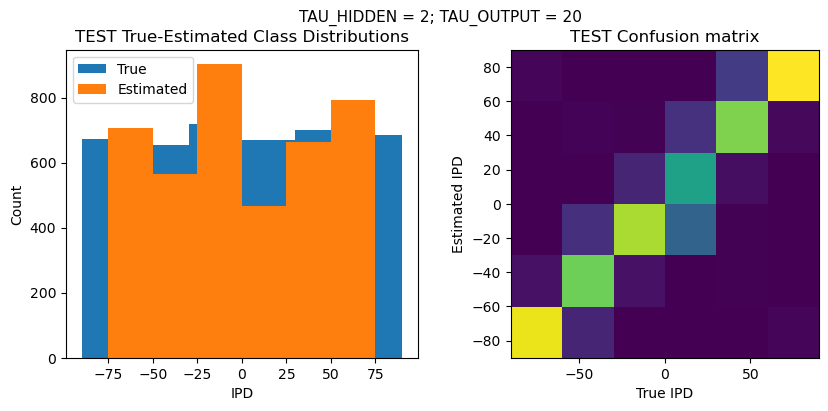

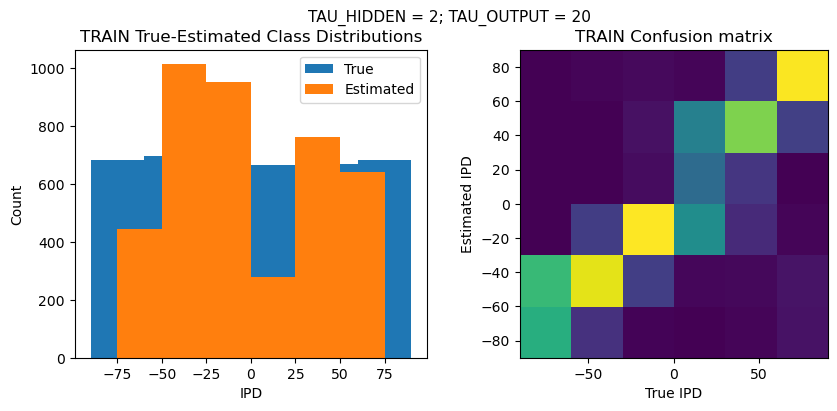

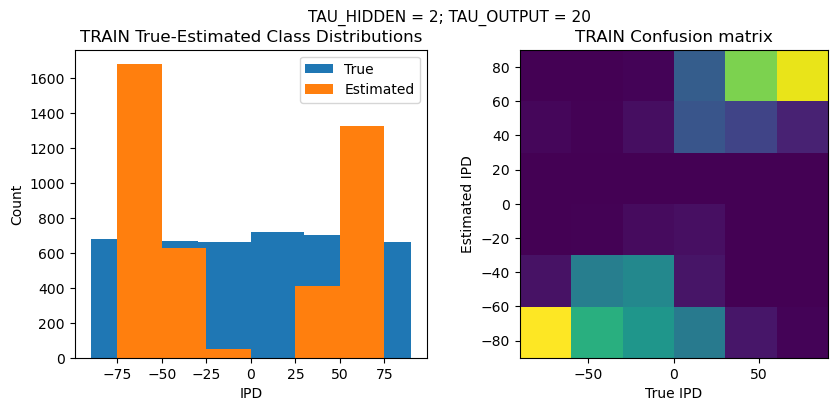

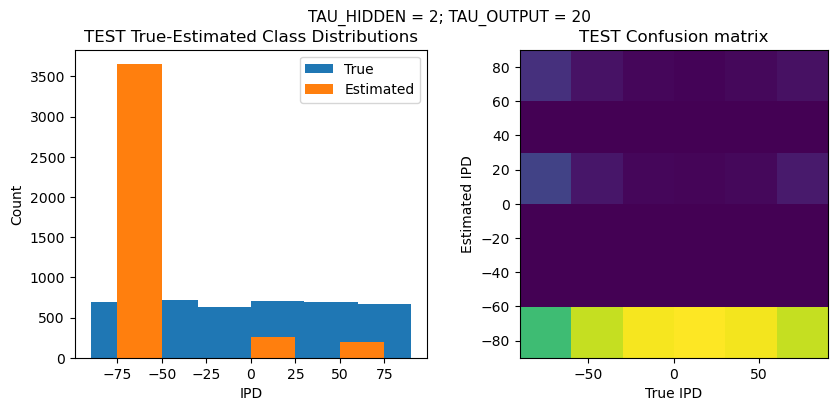

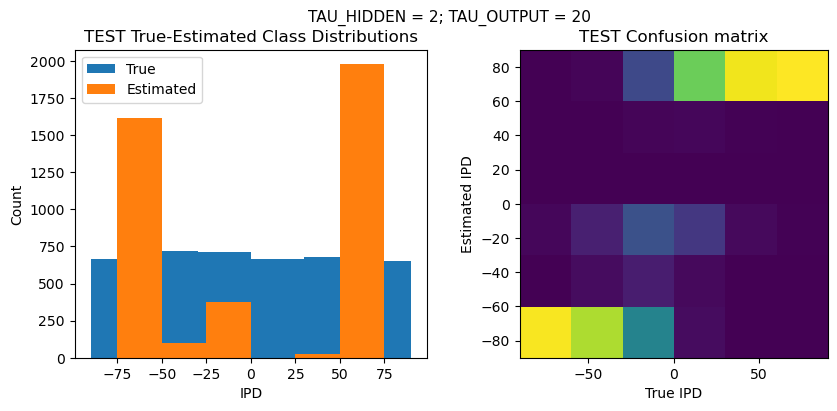

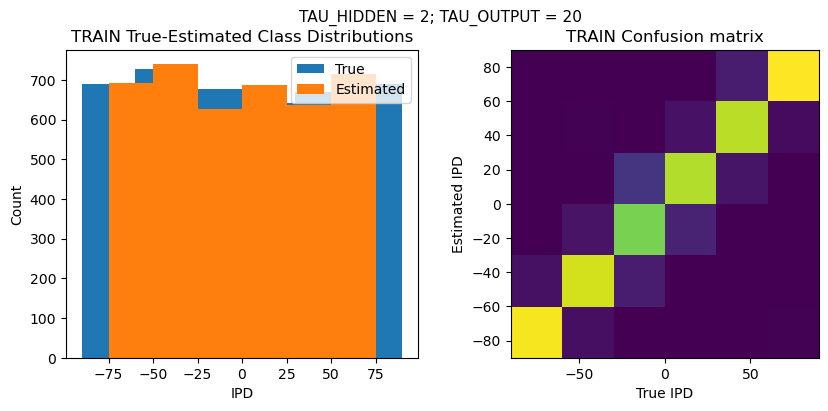

def report_accuracy(ipd_true, ipd_est, confusion, accs, label):

    abs_errors_deg = abs(ipd_true-ipd_est)*180/np.pi

    print()
    print(f"{label} classifier accuracy: {100*np.mean(accs):.1f}%")
    print(f"{label} absolute error: {np.mean(abs_errors_deg):.1f} deg")

    plt.figure(figsize=(10, 4), dpi=100)
    plt.suptitle(f"TAU_HIDDEN = {TAU_HIDDEN}; TAU_OUTPUT = {TAU_OUTPUT}", fontsize=11)

    plt.subplot(121)
    plt.hist(ipd_true * 180 / np.pi, bins=NUM_CLASSES, label='True')
    plt.hist(ipd_est * 180 / np.pi, bins=NUM_CLASSES, label='Estimated')
    plt.xlabel("IPD")
    #plt.yticks([])
    plt.ylabel("Count")
    plt.legend(loc='best')
    plt.title('{} True-Estimated Class Distributions'.format(label))

    plt.subplot(122)
    confusion /= np.sum(confusion, axis=0)[np.newaxis, :]
    plt.imshow(confusion, interpolation='nearest', aspect='equal', origin='lower', extent=(-90, 90, -90, 90))
    plt.xlabel('True IPD')
    plt.ylabel('Estimated IPD')
    plt.title('{} Confusion matrix'.format(label))

    #plt.tight_layout()
    plt.show()

def analyse_accuracy(ipds, spikes, run, label):
    ipd_true, ipd_est, confusion, accs = test_accuracy(ipds, spikes, run)
    report_accuracy(ipd_true, ipd_est, confusion, accs, label)
    return 100*np.mean(accs)

tau_hidden_list = [0.2, 0.5, 1, 2]
tau_output_list = [5, 10, 20, 30, 40, 50]
#lr_list = [0.01, 0.001]

training_count_total = len(tau_hidden_list) * len(tau_output_list)

overall_start_time = time.time()

training_count = 1
for tau_hidden in tau_hidden_list:
    for tau_output in tau_output_list:
        #for LR in lr_list:

        # Print configuration
        print('>>> Training No. {}/{}'.format(training_count, training_count_total))
        print(' ')
        print('CONFIGURATION:')
        config_str = f"DT = {DT*1e+3} ms, DURATION = {DURATION*1e+3} ms, STIMULUS_FREQUENCY = {STIMULUS_FREQUENCY} Hz, ENVELOPE_POWER = {ENVELOPE_POWER}, RATE_MAX = {RATE_MAX} Hz, NULL_PHASE_DELAYS = {NULL_PHASE_DELAYS}, LR = {LR}, N_EPOCHS = {N_EPOCHS}, EARLY_STOPPING_ENABLED = {EARLY_STOPPING_ENABLED}, BATCH_SIZE = {batch_size}, N_TRAINING_BATCHES = {n_training_batches}, N_TESTING_BATCHES = {n_testing_batches}, NUM_SAMPLES = {num_samples}, NUM_CLASSES = {NUM_CLASSES}, NUM_HIDDEN = {NUM_HIDDEN}, TAU_HIDDEN = {tau_hidden} ms, TAU_OUTPUT = {tau_output} ms, DALES_LAW = {DALES_LAW}, IE_RATIO (used if DALES_LAW) = {IE_RATIO}"
        print(' ')
        print(config_str)
        print(' ')

        start_time = time.time()

        # Generate the training data
        w1, w2, signs = init_weight_matrices(ie_ratio=IE_RATIO)
        ipds_training, spikes_training = random_ipd_input_signal(num_samples)
        ipds_validation, spikes_validation = random_ipd_input_signal(num_samples)

        # Train network
        w1_trained, w2_trained, signs = train(w1, w2, signs, ipds_training, spikes_training, ipds_validation, spikes_validation, tau_hidden=tau_hidden*MS, tau_output=tau_output*MS, lr=LR, n_epochs=N_EPOCHS)

        # Analyse
        print(' ')
        print('PERFORMANCE:')
        print(' ')
        print(f"Chance accuracy level: {100 * 1 / NUM_CLASSES:.1f}%")
        run_func = lambda x: snn(x, w1_trained, w2_trained, signs, tau_hidden=tau_hidden*MS, tau_output=tau_output*MS)
        analyse_accuracy(ipds_training, spikes_training, run_func, 'TRAIN')

        ipds_test, spikes_test = random_ipd_input_signal(batch_size*n_testing_batches)
        analyse_accuracy(ipds_test, spikes_test, run_func, 'TEST')

        end_time = time.time()
        time_taken_minutes = (end_time - start_time) / 60
        print('Time taken for this configuration: {} min'.format(round(time_taken_minutes, 0)))
        print('------------------------------------------------------------------------------------------------------------------')
        print(' ')

        training_count += 1

overall_end_time = time.time()
overall_time_taken_minutes = (overall_end_time - overall_start_time) / 60
overall_time_taken_hours = overall_time_taken_minutes / 60
print('LOOP IS DONE - {} configurations tested in {} minutes'.format(training_count_total, round(overall_time_taken_hours, 0)))

# training for tau_hidden = 2 and tau_output = 50 as the program stopped running at that point above
tau_hidden = 2
tau_output = 50

training_count = 24
training_count_total = 24
# Print configuration
print('>>> Training No. {}/{}'.format(training_count, training_count_total))
print(' ')
print('CONFIGURATION:')
config_str = f"DT = {DT*1e+3} ms, DURATION = {DURATION*1e+3} ms, STIMULUS_FREQUENCY = {STIMULUS_FREQUENCY} Hz, ENVELOPE_POWER = {ENVELOPE_POWER}, RATE_MAX = {RATE_MAX} Hz, NULL_PHASE_DELAYS = {NULL_PHASE_DELAYS}, LR = {LR}, N_EPOCHS = {N_EPOCHS}, EARLY_STOPPING_ENABLED = {EARLY_STOPPING_ENABLED}, BATCH_SIZE = {batch_size}, N_TRAINING_BATCHES = {n_training_batches}, N_TESTING_BATCHES = {n_testing_batches}, NUM_SAMPLES = {num_samples}, NUM_CLASSES = {NUM_CLASSES}, NUM_HIDDEN = {NUM_HIDDEN}, TAU_HIDDEN = {tau_hidden} ms, TAU_OUTPUT = {tau_output} ms, DALES_LAW = {DALES_LAW}, IE_RATIO (used if DALES_LAW) = {IE_RATIO}"
print(' ')
print(config_str)
print(' ')

start_time = time.time()

# Generate the training data
w1, w2, signs = init_weight_matrices(ie_ratio=IE_RATIO)
ipds_training, spikes_training = random_ipd_input_signal(num_samples)
ipds_validation, spikes_validation = random_ipd_input_signal(num_samples)

# Train network
w1_trained, w2_trained, signs = train(w1, w2, signs, ipds_training, spikes_training, ipds_validation, spikes_validation, tau_hidden=tau_hidden*MS, tau_output=tau_output*MS, lr=LR, n_epochs=N_EPOCHS)

# Analyse
print(' ')
print('PERFORMANCE:')
print(' ')
print(f"Chance accuracy level: {100 * 1 / NUM_CLASSES:.1f}%")
run_func = lambda x: snn(x, w1_trained, w2_trained, signs, tau_hidden=tau_hidden*MS, tau_output=tau_output*MS)
analyse_accuracy(ipds_training, spikes_training, run_func, 'TRAIN')

ipds_test, spikes_test = random_ipd_input_signal(batch_size*n_testing_batches)
analyse_accuracy(ipds_test, spikes_test, run_func, 'TEST')

end_time = time.time()
time_taken_minutes = (end_time - start_time) / 60
print('Time taken for this configuration: {} min'.format(round(time_taken_minutes, 0)))
print('------------------------------------------------------------------------------------------------------------------')
print(' ')

# Plot the training and test accuracies of the baseline SNN
# for different values of the hidden and output membrane time constants
import matplotlib.pyplot as plt
from matplotlib.cm import get_cmap

def plot_baselineSNN_accuracy(accuracies, tau_hidden, tau_output, label):

    # Create a color map based on tau_output values
    cmap = get_cmap('viridis')  # You can choose any colormap you like

    # Create a figure and axis
    fig, ax = plt.subplots()

    # Iterate over tau_hidden values and plot a line for each with the corresponding color
    for i, tau_hidden_value in enumerate(tau_hidden):
        color = cmap(i / (len(tau_hidden) - 1))  # Get color from the colormap
        ax.plot(tau_output, accuracies[i], label=f'Tau Hidden = {tau_hidden_value} ms', color=color)

    # Add labels, legend, and other plot details
    ax.set_xlabel('Tau Output (ms)')
    ax.set_ylabel(f'{label} Accuracy (%)')
    ax.legend()
    plt.title(f'{label} Accuracy vs Membrane Time Constants')

    # Show the plot
    plt.show()


# Membrane time constant values used for hidden and output neurons
tau_hidden = [0.2, 0.5, 1, 2]
tau_output = [5, 10, 20, 30, 40, 50]

# Baseline SNN accuracy for each tau_hidden-tau_output combination
# training performance
train_accuracy_data = np.array([
    [88.3, 88.0, 86.4, 85.6, 86.7, 90.5],  # accuracy for tau_hidden = 0.2
    [88.5, 90.0, 86.8, 89.1, 82.6, 87.0],  # accuracy for tau_hidden = 0.5
    [80.9, 83.7, 69.3, 75.0, 79.6, 85.0],  # accuracy for tau_hidden = 1
    [66.4, 66.4, 69.0, 69.4, 55.2, 60.2]   # accuracy for tau_hidden = 2
])
# test performance
test_accuracy_data = np.array([
    [77.3, 78.0, 75.3, 71.1, 76.2, 79.7],  # accuracy for tau_hidden = 0.2
    [79.9, 80.5, 78.1, 77.9, 68.4, 76.4],  # accuracy for tau_hidden = 0.5
    [73.1, 73.2, 54.3, 63.4, 68.7, 69.7],  # accuracy for tau_hidden = 1
    [55.2, 56.3, 59.0, 57.6, 45.7, 43.8]   # accuracy for tau_hidden = 2
])

# Plot the baseline SNN performance figures
plot_baselineSNN_accuracy(train_accuracy_data, tau_hidden, tau_output, label='Train')
plot_baselineSNN_accuracy(test_accuracy_data, tau_hidden, tau_output, label='Test')

NUM_CLASSES

NUM_HIDDEN

NULL_PHASE_DELAYS

tau_hidden_list = [0.2, 0.5, 1, 2]
tau_output_list = [5, 10, 20, 30]
lr_list = [0.001, 0.0001]

training_count_total = len(tau_hidden_list) * len(tau_output_list)

overall_start_time = time.time()

training_count = 1
for tau_hidden in tau_hidden_list:
    for tau_output in tau_output_list:
        for LR in lr_list:

            # Print configuration
            print('>>> Training No. {}/{}'.format(training_count, training_count_total))
            print(' ')
            print('CONFIGURATION:')
            config_str = f"DT = {DT*1e+3} ms, DURATION = {DURATION*1e+3} ms, STIMULUS_FREQUENCY = {STIMULUS_FREQUENCY} Hz, ENVELOPE_POWER = {ENVELOPE_POWER}, RATE_MAX = {RATE_MAX} Hz, NULL_PHASE_DELAYS = {NULL_PHASE_DELAYS}, LR = {LR}, N_EPOCHS = {N_EPOCHS}, EARLY_STOPPING_ENABLED = {EARLY_STOPPING_ENABLED}, BATCH_SIZE = {batch_size}, N_TRAINING_BATCHES = {n_training_batches}, N_TESTING_BATCHES = {n_testing_batches}, NUM_SAMPLES = {num_samples}, NUM_CLASSES = {NUM_CLASSES}, NUM_HIDDEN = {NUM_HIDDEN}, TAU_HIDDEN = {tau_hidden} ms, TAU_OUTPUT = {tau_output} ms, DALES_LAW = {DALES_LAW}, IE_RATIO (used if DALES_LAW) = {IE_RATIO}"
            print(' ')
            print(config_str)
            print(' ')

            start_time = time.time()

            # Generate the training data
            w1, w2, signs = init_weight_matrices(ie_ratio=IE_RATIO)
            ipds_training, spikes_training = random_ipd_input_signal(num_samples, NULL_PHASE_DELAYS)
            ipds_validation, spikes_validation = random_ipd_input_signal(num_samples, NULL_PHASE_DELAYS)

            # Train network
            w1_trained, w2_trained, signs = train(w1, w2, signs, ipds_training, spikes_training, ipds_validation, spikes_validation, tau_hidden=tau_hidden*MS, tau_output=tau_output*MS, lr=LR, n_epochs=N_EPOCHS)

            # Analyse
            print(' ')
            print('PERFORMANCE:')
            print(' ')
            print(f"Chance accuracy level: {100 * 1 / NUM_CLASSES:.1f}%")
            run_func = lambda x: snn(x, w1_trained, w2_trained, signs, tau_hidden=tau_hidden*MS, tau_output=tau_output*MS)
            analyse_accuracy(ipds_training, spikes_training, run_func, 'TRAIN')

            ipds_test, spikes_test = random_ipd_input_signal(batch_size*n_testing_batches, NULL_PHASE_DELAYS)
            analyse_accuracy(ipds_test, spikes_test, run_func, 'TEST')

            end_time = time.time()
            time_taken_minutes = (end_time - start_time) / 60
            print('Time taken for this configuration: {} min'.format(round(time_taken_minutes, 0)))
            print('------------------------------------------------------------------------------------------------------------------')
            print(' ')

            training_count += 1

overall_end_time = time.time()
overall_time_taken_minutes = (overall_end_time - overall_start_time) / 60
overall_time_taken_hours = overall_time_taken_minutes / 60
print('LOOP IS DONE - {} configurations tested in {} minutes'.format(training_count_total, round(overall_time_taken_hours, 0)))

# train baseline SNN without usual phase delays in the input creation
# as a comparison to Exp 2 without phase delays (Exp 2 from 28Oct23 jobs)

# update the hyperparams to match those used in our Exp 2
NULL_PHASE_DELAYS = True
NUM_CLASSES = 180 // 30
NUM_HIDDEN = 5
TAU_HIDDEN = 2
TAU_OUTPUT = 20
N_EPOCHS = 50

lr_list = [0.0001, 0.0004, 0.0007,  0.001,  0.004,  0.007, 0.01, 0.04, 0.07, 0.1]

overall_start_time = time.time()

training_count_total = len(lr_list)
training_count = 1
for LR in lr_list:

    # Print configuration
    print('>>> Training No. {}/{}'.format(training_count, training_count_total))
    print(' ')
    print('CONFIGURATION:')
    config_str = f"DT = {DT*1e+3} ms, DURATION = {DURATION*1e+3} ms, STIMULUS_FREQUENCY = {STIMULUS_FREQUENCY} Hz, ENVELOPE_POWER = {ENVELOPE_POWER}, RATE_MAX = {RATE_MAX} Hz, NULL_PHASE_DELAYS = {NULL_PHASE_DELAYS}, LR = {LR}, N_EPOCHS = {N_EPOCHS}, EARLY_STOPPING_ENABLED = {EARLY_STOPPING_ENABLED}, BATCH_SIZE = {batch_size}, N_TRAINING_BATCHES = {n_training_batches}, N_TESTING_BATCHES = {n_testing_batches}, NUM_SAMPLES = {num_samples}, NUM_CLASSES = {NUM_CLASSES}, NUM_HIDDEN = {NUM_HIDDEN}, TAU_HIDDEN = {TAU_HIDDEN} ms, TAU_OUTPUT = {TAU_OUTPUT} ms, DALES_LAW = {DALES_LAW}, IE_RATIO (used if DALES_LAW) = {IE_RATIO}"
    print(' ')
    print(config_str)
    print(' ')

    start_time = time.time()

    # Generate the training data
    w1, w2, signs = init_weight_matrices(ie_ratio=IE_RATIO)
    ipds_training, spikes_training = random_ipd_input_signal(num_samples, NULL_PHASE_DELAYS)
    ipds_validation, spikes_validation = random_ipd_input_signal(num_samples, NULL_PHASE_DELAYS)

    # Train network
    w1_trained, w2_trained, signs = train(w1, w2, signs, ipds_training, spikes_training, ipds_validation, spikes_validation, tau_hidden=TAU_HIDDEN*MS, tau_output=TAU_OUTPUT*MS, lr=LR, n_epochs=N_EPOCHS)

    # Analyse
    print(' ')
    print('PERFORMANCE:')
    print(' ')
    print(f"Chance accuracy level: {100 * 1 / NUM_CLASSES:.1f}%")
    run_func = lambda x: snn(x, w1_trained, w2_trained, signs, tau_hidden=TAU_HIDDEN*MS, tau_output=TAU_OUTPUT*MS)
    analyse_accuracy(ipds_training, spikes_training, run_func, 'TRAIN')

    ipds_test, spikes_test = random_ipd_input_signal(batch_size*n_testing_batches, NULL_PHASE_DELAYS)
    analyse_accuracy(ipds_test, spikes_test, run_func, 'TEST')

    end_time = time.time()
    time_taken_minutes = (end_time - start_time) / 60
    print('Time taken for this configuration: {} min'.format(round(time_taken_minutes, 0)))
    print('------------------------------------------------------------------------------------------------------------------')
    print(' ')

    training_count += 1


overall_end_time = time.time()
overall_time_taken_minutes = (overall_end_time - overall_start_time) / 60
overall_time_taken_hours = overall_time_taken_minutes / 60
print('LOOP IS DONE - {} configurations tested in {} minutes'.format(training_count_total, round(overall_time_taken_hours, 0)))

# train baseline SNN without usual phase delays in the input creation
# as a comparison to Exp 2 without phase delays (Exp 2 from 28Oct23 jobs)

# update the hyperparams to match those used in our Exp 2
NULL_PHASE_DELAYS_TRAIN = False
NULL_PHASE_DELAYS_TEST = True
NUM_CLASSES = 180 // 30
NUM_HIDDEN = 5
TAU_HIDDEN = 2
TAU_OUTPUT = 20
N_EPOCHS = 50

lr_list = [0.0001, 0.0004, 0.0007,  0.001,  0.004,  0.007, 0.01, 0.04, 0.07, 0.1]

overall_start_time = time.time()

training_count_total = len(lr_list)
training_count = 1
for LR in lr_list:

    # Print configuration
    print('>>> Training No. {}/{}'.format(training_count, training_count_total))
    print(' ')
    print('CONFIGURATION:')
    config_str = f"DT = {DT*1e+3} ms, DURATION = {DURATION*1e+3} ms, STIMULUS_FREQUENCY = {STIMULUS_FREQUENCY} Hz, ENVELOPE_POWER = {ENVELOPE_POWER}, RATE_MAX = {RATE_MAX} Hz, NULL_PHASE_DELAYS = {NULL_PHASE_DELAYS_TRAIN} (train) and {NULL_PHASE_DELAYS_TEST} (test), LR = {LR}, N_EPOCHS = {N_EPOCHS}, EARLY_STOPPING_ENABLED = {EARLY_STOPPING_ENABLED}, BATCH_SIZE = {batch_size}, N_TRAINING_BATCHES = {n_training_batches}, N_TESTING_BATCHES = {n_testing_batches}, NUM_SAMPLES = {num_samples}, NUM_CLASSES = {NUM_CLASSES}, NUM_HIDDEN = {NUM_HIDDEN}, TAU_HIDDEN = {TAU_HIDDEN} ms, TAU_OUTPUT = {TAU_OUTPUT} ms, DALES_LAW = {DALES_LAW}, IE_RATIO (used if DALES_LAW) = {IE_RATIO}"
    print(' ')
    print(config_str)
    print(' ')

    start_time = time.time()

    # Generate the training data
    w1, w2, signs = init_weight_matrices(ie_ratio=IE_RATIO)
    ipds_training, spikes_training = random_ipd_input_signal(num_samples, NULL_PHASE_DELAYS_TRAIN)
    ipds_validation, spikes_validation = random_ipd_input_signal(num_samples, NULL_PHASE_DELAYS_TRAIN)

    # Train network
    w1_trained, w2_trained, signs = train(w1, w2, signs, ipds_training, spikes_training, ipds_validation, spikes_validation, tau_hidden=TAU_HIDDEN*MS, tau_output=TAU_OUTPUT*MS, lr=LR, n_epochs=N_EPOCHS)

    # Analyse
    print(' ')
    print('PERFORMANCE:')
    print(' ')
    print(f"Chance accuracy level: {100 * 1 / NUM_CLASSES:.1f}%")
    run_func = lambda x: snn(x, w1_trained, w2_trained, signs, tau_hidden=TAU_HIDDEN*MS, tau_output=TAU_OUTPUT*MS)
    analyse_accuracy(ipds_training, spikes_training, run_func, 'TRAIN')

    ipds_test, spikes_test = random_ipd_input_signal(batch_size*n_testing_batches, NULL_PHASE_DELAYS_TEST) # testing on input WITHOUT phase delays
    analyse_accuracy(ipds_test, spikes_test, run_func, 'TEST')

    end_time = time.time()
    time_taken_minutes = (end_time - start_time) / 60
    print('Time taken for this configuration: {} min'.format(round(time_taken_minutes, 0)))
    print('------------------------------------------------------------------------------------------------------------------')
    print(' ')

    training_count += 1


overall_end_time = time.time()
overall_time_taken_minutes = (overall_end_time - overall_start_time) / 60
overall_time_taken_hours = overall_time_taken_minutes / 60
print('LOOP IS DONE - {} configurations tested in {} minutes'.format(training_count_total, round(overall_time_taken_hours, 0)))

# train baseline SNN without usual phase delays in the input creation
# as a comparison to Exp 2 without phase delays (Exp 2 from 28Oct23 jobs)

# update the hyperparams to match those used in our Exp 2
NULL_PHASE_DELAYS_TRAIN = False
NULL_PHASE_DELAYS_TEST = True
NUM_CLASSES = 180 // 30
#NUM_HIDDEN = 5  # trying a range of values
TAU_HIDDEN = 2
TAU_OUTPUT = 20
N_EPOCHS = 50

# lr_list = [0.0001, 0.0004, 0.0007,  0.001,  0.004,  0.007, 0.01, 0.04, 0.07, 0.1]
lr_list = [0.0001, 0.001, 0.01, 0.1]
num_hidden_list = [5, 10, 15, 25]

overall_start_time = time.time()

training_count_total = len(lr_list) * len(num_hidden_list)
training_count = 1
for LR in lr_list:
    for NUM_HIDDEN in num_hidden_list:

        # Print configuration
        print('>>> Training No. {}/{}'.format(training_count, training_count_total))
        print(' ')
        print('CONFIGURATION:')
        config_str = f"DT = {DT*1e+3} ms, DURATION = {DURATION*1e+3} ms, STIMULUS_FREQUENCY = {STIMULUS_FREQUENCY} Hz, ENVELOPE_POWER = {ENVELOPE_POWER}, RATE_MAX = {RATE_MAX} Hz, NULL_PHASE_DELAYS = {NULL_PHASE_DELAYS_TRAIN} (train) and {NULL_PHASE_DELAYS_TEST} (test), LR = {LR}, N_EPOCHS = {N_EPOCHS}, EARLY_STOPPING_ENABLED = {EARLY_STOPPING_ENABLED}, BATCH_SIZE = {batch_size}, N_TRAINING_BATCHES = {n_training_batches}, N_TESTING_BATCHES = {n_testing_batches}, NUM_SAMPLES = {num_samples}, NUM_CLASSES = {NUM_CLASSES}, NUM_HIDDEN = {NUM_HIDDEN}, TAU_HIDDEN = {TAU_HIDDEN} ms, TAU_OUTPUT = {TAU_OUTPUT} ms, DALES_LAW = {DALES_LAW}, IE_RATIO (used if DALES_LAW) = {IE_RATIO}"
        print(' ')
        print(config_str)
        print(' ')

        start_time = time.time()

        # Generate the training data
        w1, w2, signs = init_weight_matrices(ie_ratio=IE_RATIO)
        ipds_training, spikes_training = random_ipd_input_signal(num_samples, NULL_PHASE_DELAYS_TRAIN)
        ipds_validation, spikes_validation = random_ipd_input_signal(num_samples, NULL_PHASE_DELAYS_TRAIN)

        # Train network
        w1_trained, w2_trained, signs = train(w1, w2, signs, ipds_training, spikes_training, ipds_validation, spikes_validation, tau_hidden=TAU_HIDDEN*MS, tau_output=TAU_OUTPUT*MS, lr=LR, n_epochs=N_EPOCHS)

        # Analyse
        print(' ')
        print('PERFORMANCE:')
        print(' ')
        print(f"Chance accuracy level: {100 * 1 / NUM_CLASSES:.1f}%")
        run_func = lambda x: snn(x, w1_trained, w2_trained, signs, tau_hidden=TAU_HIDDEN*MS, tau_output=TAU_OUTPUT*MS)
        analyse_accuracy(ipds_training, spikes_training, run_func, 'TRAIN')

        ipds_test, spikes_test = random_ipd_input_signal(batch_size*n_testing_batches, NULL_PHASE_DELAYS_TEST) # testing on input WITHOUT phase delays
        analyse_accuracy(ipds_test, spikes_test, run_func, 'TEST')

        end_time = time.time()
        time_taken_minutes = (end_time - start_time) / 60
        print('Time taken for this configuration: {} min'.format(round(time_taken_minutes, 0)))
        print('------------------------------------------------------------------------------------------------------------------')
        print(' ')

        training_count += 1


overall_end_time = time.time()
overall_time_taken_minutes = (overall_end_time - overall_start_time) / 60
overall_time_taken_hours = overall_time_taken_minutes / 60
print('LOOP IS DONE - {} configurations tested in {} minutes'.format(training_count_total, round(overall_time_taken_hours, 0)))
